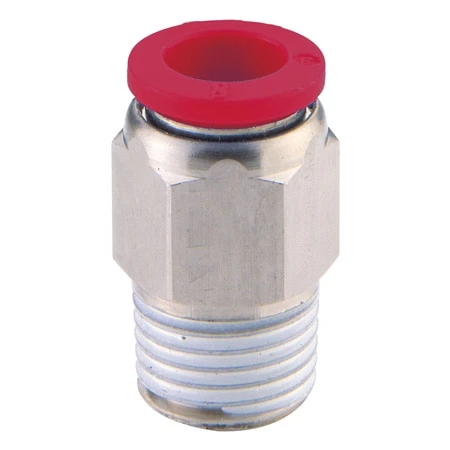

Push-to-Connect Pneumatic Airline Fittings
Original price was: $28.14.$19.70Current price is: $19.70.
- Ready to Use Air Line Fittings, Pre-Applied Sealant on Tapered Threads and O-rings on Parallel Threads
- Releasable Stainless Steel Grab-Ring to Grip Nylon or Polyurethane Tubing
- Nickel Plated Brass Components
- Internal and External Hexagons on Straight Fittings
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
The OM-AIR series has been discontinued. Please contact our Flow Engineering department for a viable replacement.
OM-AIR Pneumatic push to connect Air Line Fittings are design with a releasable stainless steel grab-ring to grip nylon or polyurethane air line tubing (85 or 95 durometer). Release buttons allow for quick assembly and release, a true Push-to-Connect design.The brass components are nickel plated and pre-applied sealant is used on all tapered threads and recessed captive o-rings on all parallel threads. Internal and external hexagons are standard on all straight fittings. Union fittings come with mounting holes.
Air Line Fittings are available in multiple thread and tubing selections: Standard to Standard : Metric to Standard ; and Metric to Metric to help you connect all your pneumatic motion devices.
SPECIFICATIONS
MATERIALS
Body: PBT
Seals: NBR (silicone free) u=packing and o-rings
Threaded Bodies: Nickel plated brass
Release Sleeves and Backing Ring: POM
Grab-Ring: Stainless steel
Collar: Nickel plated brass
Thread Sealant: Threebond 2350B TUBE SIZES (OD)
Standard Sizes: 1/8, 5/32, 1/4 and 3/8′
Metric Sizes: 3, 4, 6 and 8 mm
THREAD SIZES
Standard Size Fittings: 10-32 UNF, 1/8, 1/4 and 3/8′ NPT, M5, 1/8 and 1/4 ISO R
Miniature Size Fittings: 10-32 UNF, M3, and M5
TUBE TYPES
Nylon: 11 or 12
Polyurethane: 85 or 95 durometer
| Type | Valve, Connector, Adaptor, Plug |
|---|---|
| Shape | Straight, 90° Elbow, Tee, Wye, Manifold, Elbow |
| Thread Type | Not Applicable, BSPT Male, BSPP Female, Metric, UNF Male, NPT Male, NPT Female |
| Connection Size | Not Applicable, R1/8, R1/4, R1/2, 1/4", M5, 10-32, 3/8", 1/2", 1/8", M3 |
| Tubing Diameter # 1 | 1/4" OD, 6 mm OD, 4 mm OD, 8 mm OD, 5/32" OD, 3/8" OD, 3 mm OD, 1/8" OD |
| Tubing Diameter # 2 | Not Applicable, 1/4" OD, 5/32" OD, 5/32" OD, 4 mm OD |
| Features | In-Line Non Return, Not Applicable, Internal and External Hex, Internal Hex, In-Line, Extended, Swivel Tee, Swivel Side Tee, Regulating Out, Regulating In, Miniature, Internal and External Hex, Miniature, Internal Hex, Miniature |
| Connection Style | Push to Connect |
| Material | PBT, Nickel-Plated Brass |
