Quick Disconnect RTD (PT100) Probes With Standard Size Connector

Original price was: $81.39.Current price is: $56.97.

Standard male 3-prong connector (mating female sold separately)
Low temperature range: -50 to 250°C (-58 to 482°F)
High temperature range: -50 to 450°C (-58 to 842°F)
Extreme temperature range: -200 to 600°C (-328 to 1112°F)

Process Temperature Min

Process Temperature Max

Process Temperature Range

Number of Wires

Sheath Material

Probe Diameter

Probe Length

Additional Feature

Clear

SKU: PR-13H-3-100-1/4-6 Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

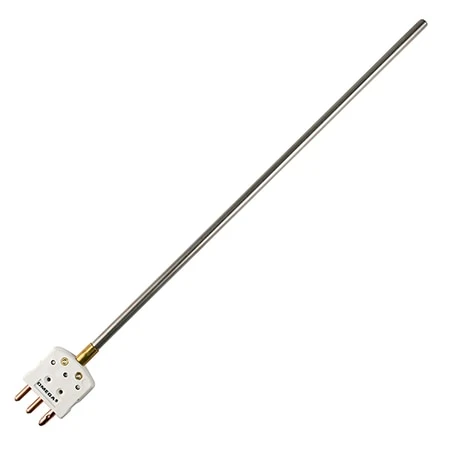

The PR-13 RTD probe assembly has a 3-prong Omega “OTP” standard style connector for easy connection to extension cables, hand-held meters or other instrumentation. Probe diameter is 1/8″, 3/16″ or 1/4″. The measuring portion of the probe can be simply inserted into a container to measure liquid temperature, or fixed into place in a pipe, tank, or vessel using an optional “BRLK” or “SSLK” compression fitting. These probes can be ordered with PT100 or PT1000 resistance element.

Process Temperature Min	-50, -200
Process Temperature Max	450, 600, 600.0, 250
Process Temperature Range	-50 to 450°C (-58 to 842°F), -200 to 500°C (-328 to 932°F), -200 to 600°C (-328 to 1112°F), -200 to 60°C (-328 to 1112°F), -50 to 250°C (-58 to 482°F)
Number of Wires	3, 3.0
Sheath Material	316 Stainless Steel, 304 Stainless Steel
Probe Diameter	0.250 in, 0.062 in, 0.125 in
Probe Length	6 in, 12 in, 18 in, 24 in, 4 in, 60 in, 3 in, 9 in
Additional Feature	None, RTD
Category	RTD
Process Temperature Unit	°C
Sensor Application	Immersion Probe
Process Connection Size	None
Accuracy	Class A per IEC60751
Nominal Output	100 Ω
Termination Connection Type	3-Prong Standard Connector
