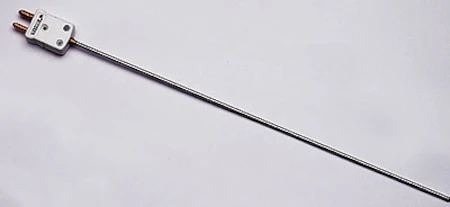

Quick Disconnect Thermistor Probes With 2-prong Connectors

Original price was: $165.46.Current price is: $98.99.

For Use with Heavy-Duty
Available in GP General Purpose
Available in AP Air Probe
Available in NP Needle Probe
12” Std Probe length
Made with 304 Stainless steel
Made with high precision 44033 thermistor element, rated up to 100°C (212°F)

Sensor Application

Number of Wires

Probe Diameter

Probe Length

Clear

SKU: THX-400-AP-12 Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Description

The THX-400-GP probe sutable for use with an HDX handle is ideal for general purpose immersion measurement in gases and liquids. Made from a rugged 1/8″ (3.1 mm) O.D. 304 stainless steel sheath 12″ (304 mm) long, the probe will adapt to most process applications. A high precision 44033 thermistor element is used (2252 ohm @ +25°C), which provides 0.1°C interchangeability and a temperature range of -40 to 100°C (-40 to 212°F).

The THX-400-AP is designed for HVAC applications. The small diameter sheath and radiant energy shield easily fit into duct work, grilles and vents. The probe will work with the OMEGA™ HDX handle or can be permanently mounted using OMEGALOK™ compression fittings. Made from a rugged 3/16″ (4.8 mm) O.D. 304 stainless steel sheath 12″ (304 mm) long, the tip is perforated to expose the thermistor bead to air flow for fast, accurate measurements. The 44033 precision thermistor element is rated to 100°C (212°F).

The THX-400-NPsharp pointed probe is used with a rugged HDX handle. It will easily pierce soft and semi-frozen material as well as soil and sand. Made from a rugged 1/8″ (3.1 mm) O.D. 304 stainless steel sheath 12″ (304 mm) long. A high precision 44033 thermistor element is used which provides 0.1°C interchangeability and a temperature range of -40 to 100°C (-40 to 212°F).

The OMEGA™ HDX Handle is suitable for use with these quick disconnect probes. It must have an uncompensated OST connector and copper extension cord.

Sensor Application	Air Probe, Immersion Probe, Penetration Probe
Number of Wires	3 m (10 in), 2
Probe Diameter	0.187", 0.125 in
Probe Length	12 in, 10 in, 24 in, 4 in, 5 in, 6 in, 6.5 in, 8 in
Category	Thermistor
Process Temperature Unit	°C
Process Temperature Min	-40
Process Temperature Max	100
Process Temperature Range	-40 to 100°C (-40 to 212°F)
Accuracy	±0.1°C
Nominal Resistance	2252 Ω @ 25°C/75°F
Sheath Housing Material	304 Stainless Steel
Cable Insulation	Not Applicable
Wire Gauge	Not Applicable
Cable Length	Not Applicable
Termination Connection Type	Standard Connector
