Reduced Fine Tip Diameter Thermocouple Probes With Lead Wire

Original price was: $87.03.Current price is: $60.92.

J, K, T, E Calibrations
Reduced Tip = Fast Time Response
Cold End Temperature to 200C,(392F)
Tip Temperature to 700C, (1292F)

Thermocouple Type

Process Temperature Max

Termination Connection Type

Probe Length

Junction Type

Sheath Material

Process Temperature Range

Clear

SKU: TJFT72-E-SS-116G-6-SMPW-M Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

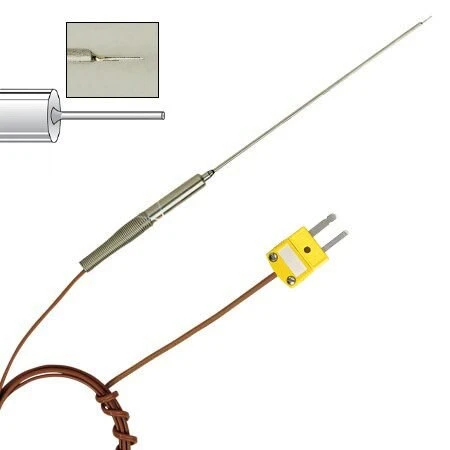

Fine tip transition joint thermocouple, 6″ long, with 304 SS sheath, 1/16″ OD. Supplied with 6 ft. PFA-insulated wire with SMPW miniature male connector. Tip has a 0.020″ diameter sensing mass. <

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	E, J, K, T
Process Temperature Min	0
Color Code Standard	ANSI (Standard)
Cable Length	72 in
Wire Gauge	24 AWG
Cable Insulation	PFA
Probe Diameter	0.062 in
Sensor Application	Immersion Probe
Process Temperature Unit	°C
Process Temperature Max	440, 150
Category	Thermocouple
Termination Connection Type	Miniature Connector, Stripped Leads
Probe Length	6 in, 12 in, 2 in, 3 in
Junction Type	Grounded, Ungrounded
Sheath Material	304 Stainless Steel, Inconel® 600
Process Temperature Range	0 to 440°C (32 to 825°F), 0 to 150°C (32 to 302°F)
Additional Feature	Fine Tip
