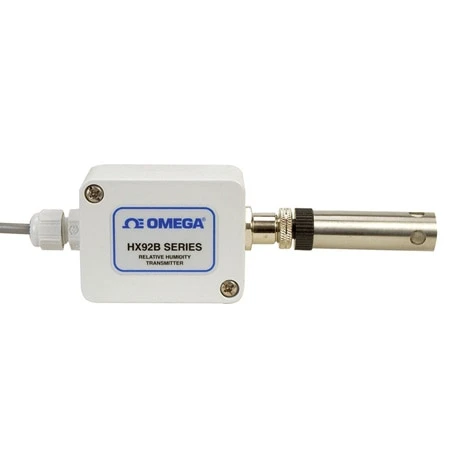

Relative Humidity Signal Conditioner/Transmitter With Probe

Original price was: $356.88.Current price is: $95.99.

4 to 20 mA, 0 to 1 Vdc, 0 to 5 Vdc or 0 to 10 Vdc Outputs
Accurate to ±2.5% (20 to 80% Relative Humidity)
Rugged Industrial Splashproof Enclosure NEMA 13 (IP54)
Duct Mount Kit Included with Duct Mount and Remote Probe Models

Output Type

Supply Voltage Type

Additional Feature

Clear

SKU: HX92BC Categories: Air, Soil, Liquid, and Gas, Control & Monitoring, Temperature and Humidity Transmitters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The HX92B Series transmitters provide remote and on-site monitoring of relative humidity. It is available with either voltage or 2-wire current output. The transmitter output is linearized and temperature compensated. Current output models enable placing of the transmitter at a remote location virtually any distance away from the measuring device. All models use an accurate digital sensor. A stainless steel mesh type filter, easily removable for cleaning, protects the sensor. Mounting screws are easily accessible inside the rugged, polycarbonate enclosure which protects the electronics to NEMA 13 (IP54) specifications.

Specifications
Input Power
4 to 20mA:&nbsp9 to 30Vdc @ 50mA
0 to 1V:&nbsp9 to 30Vdc @ 50mA
0 to 5V:&nbsp9 to 30Vdc @ 50mA
0 to 10V: 12 to 30Vdc @ 50mA
Measuring Range: 0 to 100% RH
Accuracy: ±2.5% from 20 to 80% RH; ±3.5% from 5 to 20% and 80 to 95% RH; ±4% from 0 to 5% and 95 to 100% RH
Output:
HX92BC: 4 to 20 mA for 0 to 100% RH
HX92BV0: 0 to 1 Vdc for 0 to 100% RH
HX92BV1: 0 to 5 Vdc for 0 to 100% RH
HX92BV2: 0 to 10 Vdc for 0 to 100% RH
Relative Humidity Temperature Compensation: -30 to 75°C (-22 to 167°F)
Relative Humidity Response Time: 8 second typical
Repeatability: ±0.1% RH
Sample Rate: 1 sample every 4 seconds
Housing: Gray polycarbonate, NEMA 13 (IP54)
Connections: Liquid-tight nylon with neoprene gland, for 2.29 to 6.73 (0.09 to 0.265″)diameter cable; internal 5 position terminal block accepts 14 to 22 gauge wire
Dimensions:
HX92B(*) (without Probe): 65 L x 50 W x 34.8 D mm (2.56 x 1.97 x 1.37″)
TP-SP (Short Probe): 16 dia. x 71.88 L mm (0.63 x 2.83″)
Weight:
HX92B(*): 124 g (4.4 oz)
HX92B(*)-D: 132 g (4.7 oz)
HX92B(*)-RP1: 230 g (8.1 oz)

Output Type	mA, V
Supply Voltage Type	9 to 30 Vdc, 12 to 30 Vdc
Additional Feature	Wall Mount, Duct Mount, Remote Probe
Input Type	Humidity
Input Ranges	0 to 100%
Programability	None
