Remote Mounted Transit-Time Ultrasonic Flow Meter & Display

Original price was: $343.00.Current price is: $96.99.

Clamp-on, non-invasive Flow Meter
Bidirectional flow measurement system
Measures flow rate, total and velocity of water flow
Set up the meter through keypad interface or with SoloCUE® Flow Device Manager software

Pipe Diameter Range

Accuracy

Pipeing Material

Transducer Cable Length

Clear

SKU: DW-G-CA-F-S-AC-WW-XX-G-F Categories: Flow Instruments, Flow Meters, Ultrasonic Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

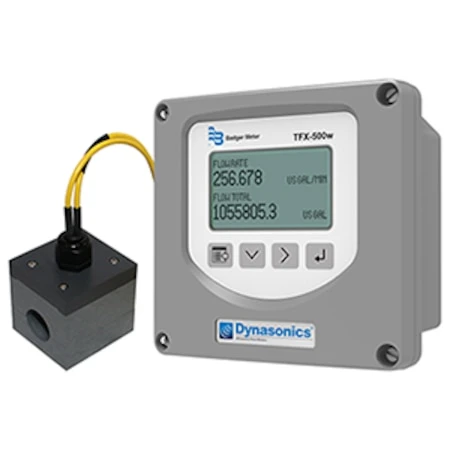

The TFX-500w Remote Mounted Transit Time Ultrasonic Flow Meter measures volumetric flow of clean water in pipes 2 in. or smaller. By clamping on the outside of the pipe, the ultrasonic meter installs without cutting or tapping the pipe.

Pipe Diameter Range	1/2", 1", 1 1/2", 2"
Accuracy	±1% FS, Up to ±1% of Reading
Pipeing Material	ANSI Pipe, Copper Tubing, Stainless Steel Tubing
Transducer Cable Length	15 Ft., 30 Ft.
Velocity Range	0.1…40 ft/s (0.03…12 m/s), bidirectional
Media Type	Clean Fluids w/suspended solids or gas bubbles
Output Signal	4 to 20 mA & Two Pulse/Freq/Alarm
Display	LED
Supply Power	9 to 28 Vdc
Features	Modbus RTU, BACnet MS/TP, Keypad Programming
