Replacement Flow Tubes For Flow Meters & Gas Proportioners

Original price was: $115.24.Current price is: $80.67.

Multitube Assemblies
Gas Proportioners

Flow Rate

Material

Media Type

Clear

SKU: FLT-40SA Categories: Flow Accessories, Flow Instruments, Flow Measurement Accessories Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

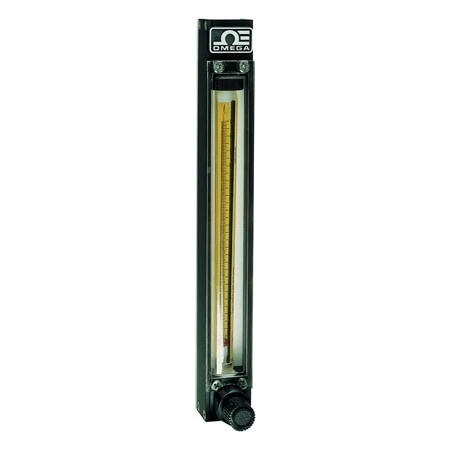

The flow tubes shown on this page can be installed into the FL3000, gas proportioning FL-1GP Series or multiple tube FL-2AA Series 150 mm Variable Area Flow Meters. Flow capacities shown are based on calibrations with air and water at 21°C (70°F) and 14.7 psia. For other fluids or conditions, the following equations provide rough approximations.

GAS
Q_a = Q_g x [G x (T_a/T₀) x (P₀/P_a)]^1/2

where:
Q_a = equivalent air flow scale reading at Standard Conditions
Q_g = true flow of metered gas
G = specific gravity of metered gas
T_a = absolute temperature at flow conditions (Kelvin or Rankine)
T₀ = absolute temperature at standard conditions (294 K or 530°R)
P_a = pressure at flow conditions (psia)
P₀ = pressure at Standard Conditions (14.7 psia)

LIQUID
Q_w = Q_L x [(d_f – d_w)/(d_f – d_L)) x (d_L/d_w)]^1/2

where:
Q_w = equivalent water flow capacity at Standard Conditions
Q_L = max flow of metered liquid
d_f = density of float selected
   Glass: 2.53 g/ml
   Sapphire: 3.98 g/ml
   Stainless Steel: 8.04 g/ml
   Carboloy: 14.98 g/ml
   Tantalum: 16.58 g/ml
d_L = density of metered liquid, g/ml
d_w = density of water at Standard Conditions (1.0 g/ml)
(note: does not include viscosity effect)

150 mm Flowtube, Gas Flow Capacities of Routine Gases
Ranges in cc/min, flowtubes have 10:1 range

Model No.	Air	Water	Argon	CO₂	He	H₂	N₂	O₂
FLT-45G	19	0.196	15	23	16	37	20	17
FLT-45SA	30	0.392	24	37	26	59	31	27
FLT-45ST	60.6	0.94	49	72	53	123	62	54
FLT-45C	110	1.91	90	127	101	232	114	99
FLT-45T	121	2.13	99	139	112	256	125	109
FLT-41G	49	0.49	44	56	46	94	48	42
FLT-41SA	73	0.98	60	84	69	149	76	70.4
FLT-41ST	143	2.34	113	150	133	301	143	131
FLT-41C	247	4.7	202	251	260	567	255	228
FLT-41T	264	5.1	222	263	288	602	274	244
FLT-61G	93	0.9	75.6	103	90	208	92	81
FLT-61C	444	8.5	373	445	519	1120	462	407
FLT-61T	484	9.2	393	470	555	1225	495	433
FLT-02G	374	5.5	305	355	450	1021	382	340
FLT-02SA	513	10.0	429	472	681	1497	520	472
FLT-02ST	814	20.4	676	728	1290	2496	824	753
FLT-02C	1222	33.7	1020	1072	2221	3876	1220	1131
FLT-02T	1331	36.1	1085	1134	2356	4257	1310	1206
FLT-03G	844	16.5	687	725	1490	2620	827	772
FLT-03SA	1093	26.1	910	944	2059	3546	1110	1024
FLT-03ST	1682	44.6	1380	1420	3397	5547	1662	1545
FLT-03C	2423	70.5	1996	2039	5120	8170	2405	2246
FLT-03T	2576	75.6	2131	2163	5437	8717	2575	2364
FLT-04G	2313	54	1949	2048	4880	7817	2395	2169
FLT-04SA	3079	78	2605	2620	6458	10,455	3142	2860
FLT-04ST	4562	133	3903	3990	9770	15,855	4685	4341
FLT-04C	6621	201	5665	5743	14,500	22,790	6845	6307
FLT-04T	6932	212	6040	6018	15,420	24,252	7080	6690
FLT-05G	3922	84	3151	3374	7803	13,105	3868	3485
FLT-05SA	5188	126	4175	4388	10,336	16,108	5090	4652
FLT-05ST	7825	217	6384	6308	15,960	27,804	7722	6992
FLT-05C	11,154	329	9460	9222	23,509	37,553	10,973	10,082
FLT-05T	11,965	353	9627	9475	25,131	39,998	11,628	10,741
FLT-39G	8678	210	7366	7485	19,426	29,840	8916	8269
FLT-39SA	11,357	306	9539	9557	25,400	40,006	11,524	10,706
FLT-39ST	16,737	506	14,131	14,051	38,576	59,995	17,021	15,710
FLT-39C	23,752	747	20,166	19,854	56,220	83,052	24,071	22,432
FLT-39T	25,252	790	21,414	21,115	60,596	90,410	25,709	23,790
FLT-40G	23,742	541	19,761	18,989	53,100	85,812	23,512	21,350
FLT-40SA	30,711	806	24,563	23,855	70,100	110,100	29,930	27,181
FLT-40ST	45,227	1288	35,300	34,287	103,647	159,699	43,000	39,567
FLT-40C	66,346	1881	47,890	46,311	146,500	221,872	59,580	54,902
FLT-40T	69,940	2001	51,997	49,009	189,826	234,423	63,826	57,960

Flow Rate	Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 5120 cc/min H 8170 cc/min N 2405 cc/min O 2246 cc/min, Air 1222 cc/min Water 33.7 cc/min Argon 1020 cc/min CO2 1072 cc/min He 2221 cc/min H 3876 cc/min N 1220 cc/min O 1131 cc/min, Air 1331 cc/min Water 36.1 cc/min Argon 1085 cc/min CO2 1134 cc/min He 2356 cc/min H 4257 cc/min N 1310 cc/min O 1206 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 101 cc/min H 232 cc/min N 114 cc/min O 99 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 10336 cc/min H 16108 cc/min N 5090 cc/min O 4652 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 103647 cc/min H 159699 cc/min N 43000 cc/min O 39567 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 112 cc/min H 256 cc/min N 125 cc/min O 109 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 133 cc/min H 301 cc/min N 143 cc/min O 131 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 14500 cc/min H 22790 cc/min N 6845 cc/min O 6307 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 146500 cc/min H 221872 cc/min N 59580 cc/min O 54902 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 1490 cc/min H 2620 cc/min N 827 cc/min O 772 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 15420 cc/min H 24252 cc/min N 7080 cc/min O 6690 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 15960 cc/min H 27804 cc/min N 7722 cc/min O 6992 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 16 cc/min H 37 cc/min N 20 cc/min O 17 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 189826 cc/min H 234423 cc/min N 63826 cc/min O 57960 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 19426 cc/min H 29840 cc/min N 8916 cc/min O 8269 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 2059 cc/min H 3546 cc/min N 1110 cc/min O 1024 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 23509 cc/min H 37553 cc/min N 10973 cc/min O 10082 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 25131 cc/min H 39998 cc/min N 11628 cc/min O 10741 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 25400 cc/min H 40006 cc/min N 11524 cc/min O 10706 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 26 cc/min H 59 cc/min N 31 cc/min O 27 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 260 cc/min H 567 cc/min N 255 cc/min O 228 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 288 cc/min H 602 cc/min N 274 cc/min O 244 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 3397 cc/min H 5547 cc/min N 1662 cc/min O 1545 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 38576 cc/min H 59995 cc/min N 17021 cc/min O 15710 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 450 cc/min H 1021 cc/min N 382 cc/min O 340 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 46 cc/min H 94 cc/min N 48 cc/min O 42 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 4880 cc/min H 7817 cc/min N 2395 cc/min O 2169 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 519 cc/min H 1120 cc/min N 462 cc/min O 407 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 53 cc/min H 123 cc/min N 62 cc/min O 54 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 53100 cc/min H 85812 cc/min N 23512 cc/min 21350 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 5437 cc/min H 8717 cc/min N 2575 cc/min O 2364 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 555 cc/min H 1225 cc/min N 495 cc/min O 433 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 56220 cc/min H 83052 cc/min N 24071 O 22432 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 60596 cc/min H 90410 cc/min N 25709 cc/min O 23790 cc/min, Air 374 cc/min Water 5.5 cc/min Argon 305 cc/min CO2 355 cc/min He 9770 cc/min H 15855 cc/min N 4685 cc/min O 4341 cc/min, Air 513 cc/min Water 10 cc/min Argon 429 cc/min CO2 472 cc/min He 681 cc/min H 1497 cc/min N 520 cc/min O 472 cc/min, Air 814 cc/min Water 20.4 cc/min Argon 305 cc/min CO2 355 cc/min He 1290 cc/min H 2496 cc/min N 824 cc/min O 753 cc/min
Material	Red Sapphire, Carboloy, Black Glass, 316 Stainless Steel, 316 Stainless Steel with NIST Calibration for AIR, Tantalum
Media Type	Air Water Argon CO2 He H N O, Air, Water, Argon, CO2, He, H, N, O
Connection Size	150 mm Flowtubes
Works With	FL-3000 Series Variable Area Flow Meters
