Replacement Thermocouple Probes For 1/2″ NPT Protection Heads

Original price was: $95.55.Current price is: $66.89.

Wide Variety of Wire Types Available
J, K, T, E, N, Calibration Types
User Selectable Diameter and Length
Made with Special Limits of Error Wire

Thermocouple Type

Process Temperature Range

Sensor Application

Process Connection Size

Sheath Material

Junction Type

Probe Diameter

Probe Length

Cable Insulation

Termination Connection Type

Additional Feature

Clear

SKU: NB1-ICSS-14U-2RP-TT36 Categories: Probes with Industrial Heads, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

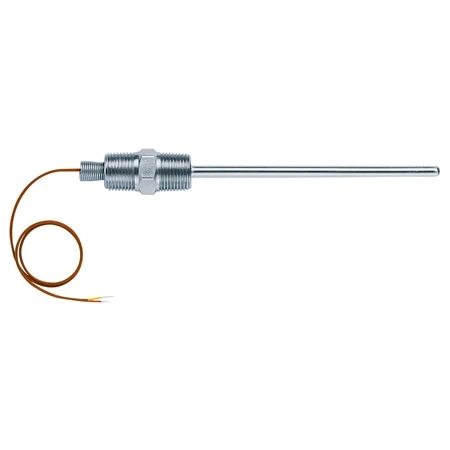

Flexible lead wire replacement probe is ideal for field installation with existing protection heads or for extending leads to remote locations. Flexible leads prevent breakage in hard to wire situations. Provided with 20 AWG stranded lead wire and 1/2 x 1/2 NPT hex fitting. Probe length includes 1/2″ of hex fitting threads. Convenient sizes listed in the “To Order” box or use the Part Number Builder below.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	J, K, T, E
Process Temperature Range	0 to 720°C (32 to 1300°F), 0 to 1150°C (32 to 2100°F), 0 to 920°C (32 to 1690°F), 0 to 1070°C (32 to 1960°F), 0 to 260°C (32 to 500°F), 0 to 370°C (32 to 700°F), 0 to 315°C (32 to 600°F), 0 to 510°C (32 to 950°F), 0 to 820°C (32 to 1510°F), 0 to 650°C (32 to 1200°F), 0 to 440°C (32 to 825°F), 0 to 520°C (32 to 970°F), 0 to 620°C (32 to 1150°F)
Sensor Application	Immersion Probe, Air Probe
Process Connection Size	1/2" NPT, 1/2 NPT
Sheath Material	304 Stainless Steel, Inconel® 600
Junction Type	Ungrounded, Exposed, Grounded
Probe Diameter	0.25 in, 0.062 in, 0.125 in, 0.187 in, 1/4 in
Probe Length	2 in, 4 in, 12 in, 9 in, 18 in, 6 in, 24 in, 8 in
Cable Insulation	PFA, Fiberglass
Termination Connection Type	Stripped Leads, Lead wire
Additional Feature	None, Replacement Probe
Category	Thermocouple
Cable Length	40 in
