SPECIFICATIONS
Maximum Temperature Standard Models: 87°C (190°F) CPVC body 100°C (212°F) PVDF body
Mounting Assembly: CPVC or PVDF, FKM O-Rings; 1 MNPT Pipe thread
Available Options:
“-HF” Fluoride resistant, for additional cost
“-LC” Low conductivity, for additional cost
“-GL” Ground loop, for additional cost
Retractable PH/ORP Electrodes For Tanks And Main Lines
$390.00 Original price was: $390.00.$95.99Current price is: $95.99.
- 16 Month Shelf Life
- Acrylamide Gel Standard
- Can Be Installed in Any Direction
- Retractable Design Allows Removal Without System Shutdown
SKU: PHE-6821 Categories: Air, Soil, Liquid, and Gas, Control & Monitoring, Water Quality Sensors Tag: Omega Engineering
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

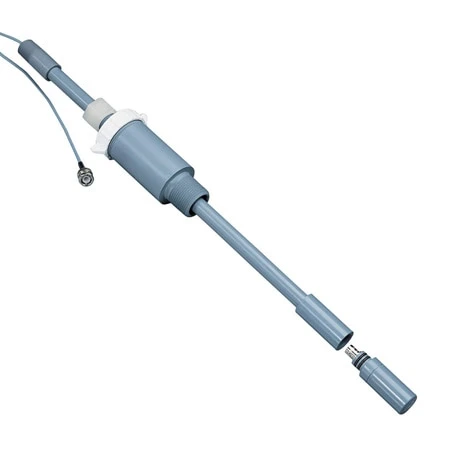

The PHE-6820B electrode and assembly features a retractable design for insertion into tanks and main lines. The assembly, when used with a 1″ full port or larger ball valve (user supplied), allows the electrode to be removed without shutting the system down. This electrode can be mounted in any location, even up through the bottom of a tank with the electrode surface facing upward. Its unique design affords mounting in any direction and is suitable for most systems’ inherent design. The flat surface design minimizes fouling and coating and eliminates electrode breakage. Turbulent flow across the electrode surface results in a scrubbing action that keeps the electrode clean. The flat surface electrode is specifically designed for difficult applications such as oily waste water, emulsions, lime slurries, and flocculants.
| Measurement Type | pH, ORP |
|---|---|
| Range | 0 to 14 pH, ±2000 mV |
| Wetted Materials | PVDF, CPVC |
| Max Temperature | 100 °C (212 °F), 87 °C (190 °F) |
| Process Connection Type | NPT Male |
| Process Connection Size | 1" |
| Features | Not Applicable |
