Roller Thermocouple Handle Probes For Moving Or Rotating Surfaces

Original price was: $341.97.Current price is: $96.99.

K and E Calibrations
Roller-Surface Probes
Swivel and Non-Swivel Head Designs Available
Maximum Surface Temperature of 205°C (400°F)

Thermocouple Type

Termination Connection Type

Color Code Standard

Additional Feature

Clear

SKU: 88201E Categories: Handheld Probes, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

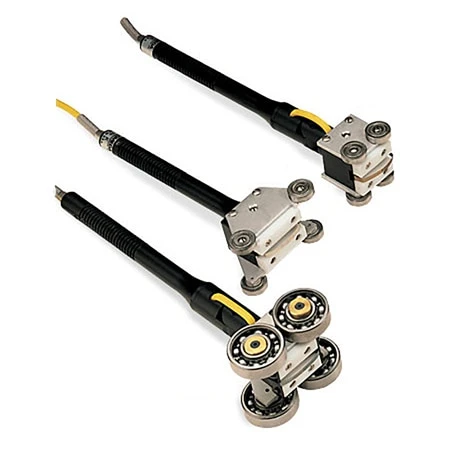

The 88000 series roller surface probes provides a means of measuring moving surfaces without stopping the process. Equipped with rollers these probes can obtain a temperature while a surface remains in motion.

Model 88201(*) and Model 98201(*) with Swivel Head
A roller-surface probe, for use on moving or rotating, smooth surfaces with a velocity up to 61 meters (200 ft.) per minute. Max. surface temperature of 205°C 400°F).
Replacement elements not included, to purchase additional elements order P/N 88201(*)-RE)

Model 88202(*) and Model 98202(*) with Swivel Head
A roller-surface probe, ideal for measuring outside wall temperatures of smooth plastic or steel piping. Can be used on moving or rotating surfaces of 22 to 60 inches in diameter, with 90 meters (300 ft.) per minute max. surface velocity. Max. surface temperature of 205°C (400°F). (Replacement elements not included, to purchase additional elements order P/N 88202(*)-RE)

Model 88203(*) and Model 98203(*) with Swivel Head
For rotating, smooth metallic surfaces of 9 to 24 inches in diameter. 90 meters (300 ft.) per minute max. surface velocity. Max. surface temperature of 205°C (400°F).
(Replacement elements not included, to purchase additional elements order P/N 88203(*)-RE)

Thermocouple Type	E, K
Termination Connection Type	Miniature Connector with Molded Strain Relief, Miniature Connector
Color Code Standard	ANSI (Standard), IEC
Additional Feature	Rollers with Overall Length 6 in, Rollers with Overall Length 6.5 in, Rollers with Overall Length 6.37 in, Swivel Head with Rollers Overall Length 6 in, Swivel Head with Rollers Overall Length 6.5 in, Swivel Head with Rollers Overall Length 6.37 in
Category	Thermocouple
Process Temperature Unit	°C
Process Temperature Min	0
Process Temperature Max	205
Process Temperature Range	0 to 205°C (32 to 400°F)
Sensor Application	Handheld Surface
Cable Insulation	TPE Plastic
Cable Length	60 in
