Round Face Thermocouple Handle Probes For Stationary Surfaces

Original price was: $203.20.Current price is: $95.99.

K and E Type Calibrations
Ideal for measuring the surface temperature of plates, walls, molds, dies and other stationary surfaces.
Sturdy Round Face Sensing Head
To Maximum Temperature of 480°C (900°F).

Thermocouple Type

Process Temperature Max

Process Temperature Range

Color Code Standard

Additional Feature

Clear

SKU: 88012K Categories: Handheld Probes, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

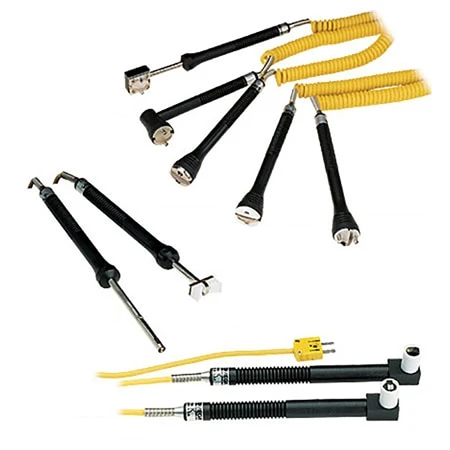

Model 88001(*)
Standard probe for stationary surfacemeasurements. Suited to molds, plates, walls, glassware, etc. 480°C (900°F) max. surface temperature.

Model 88002(*)
Ideal for measuring the surface temperature of plates, walls, molds, dies and other stationary surfaces. The thermocouple is protected by two PFA guards. 250°C (480°F). max. surface temperature.
Probe is not designed for long-term exposure to high temperatures.

Model 88003(*)
For surface measurements of materials such as stone, iron and steel. The element is protected by metal side guards. 480°C (900°F). max. surface temperature.

Model 88011(*)
Designed to measure the surface of pipes with a 13/16″ diameter, with a max. surface temperature of 250°C (480°F). Probe is not designed for long-term exposure to high temperature.

Model 88012(*)
Ideal for measurements of small surfaces. The probe has a 1/4″ surface diameter, with a 480°C (900°F) max. surface temperature.

Model 88101(*)
For measuring stationary surface temperatures, with a right-angle head for hard-to-reach inside surfaces. 480°C (900°F). max. surface temperature.

Model 88102(*)
Right-angle, pencil-type surface probe, best suited to stationary surfaces. Sensing element is perpendicular to the handle 250°C (480°F) max. surface temperature.

Model 88103(*)
A narrow head, allowing the probe to fit through narrow openings. 480°C (900°F). max. surface temperature.

Model 88105(*)
Similar to the 88102, with the sensing element running parallel to the handle. 250°C (480°F) max. surface temperature.

* Specify Calibration:
K: CHOMEGA™-ALOMEGA™
E: CHROMEGA™-Constantan

Thermocouple Type	K, E
Process Temperature Max	482, 250
Process Temperature Range	0 to 482°C (32 to 900°F), 0 to 250°C (32 to 482°F)
Color Code Standard	ANSI (Standard), IEC
Additional Feature	Small Surface Measurement Overall Length 5.9 in, Suited for molds, plates, walls, glassware, Suited for molds, dies, plates, walls, glassware, Suited for stone, iron and steel, Curved Surface with Overall Length 7.37 in, Right Angle Overall Length 5.56 in, Right Angle Overall Length 5.87 in, Narrow Head Overall Length 7.93 in, Right Angle Round Face Overall Length 5.87 in
Category	Thermocouple
Process Temperature Unit	°C
Process Temperature Min	0
Sensor Application	Handheld Surface
Cable Insulation	TPE Plastic
Cable Length	60 in
Termination Connection Type	Miniature Connector
