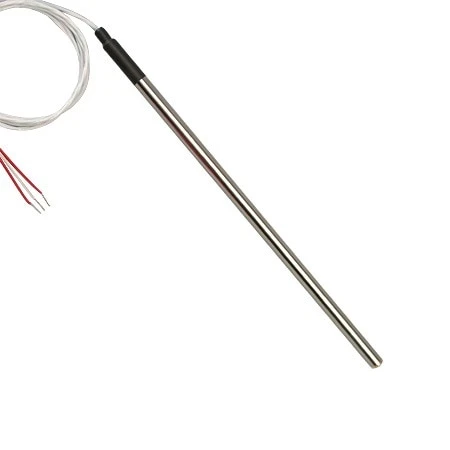

RTD Probe With Copper Tip And Extension Cable, Class B

Original price was: $94.00.Current price is: $65.80.

Sensor Includes a Copper Tip Which Improves Thermal Response Time to 2 Seconds or Less (63% Response Time in Water Flowing at 3 Feet per Second).
Perfect for Use in Thermowells or as a Direct Immersion Sensor.
Can be Made in Many Sensor Configurations, and Can Be Used With a Wide Variety of Fittings and Accessories
Contains a Precision 100 Ohm Class B DIN Platinum Thin Film Element

Number Of Wires

Probe Diameter

Additional Feature

Cable Length

Probe Length

Clear

SKU: PRTFCU-10-2-100-1/4-18-E Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

This sensor incorporates a copper tip which provides an efficient way to thermally connect the sensing element to the process conditions to be measured. This becomes especially important in applications where the sensor has little exposure to the item being measured such as in thermowells and bearing temperatures.
The PRTFCU sensor can be customized to function like many of our immersion sensor designs such as the PRTF-10 Immersion Probe, PRTF-13 Quick Disconnect Probes, PRTF-12,14,18 or 19 Spring Loaded Probes with Connection Heads.

Number Of Wires	3, 2
Process Temperature Range	-50 to 260°C (-58 to 500°F)
Wire Gauge	26 AWG
Cable Insulation	PFA
Sheath Material	304 Stainless Steel with Copper Tip
Nominal Resistance	100 Ω
Accuracy	Class B per IEC60751
Sensor Application	Immersion Probe with Fast Response Time
Process Temperature Max	260
Probe Diameter	0.250 in, 0.187 in, 6.00 mm
Process Temperature Min	-50
Process Temperature Unit	°C
Category	RTD
Additional Feature	none, With Shrink Tube
Cable Length	40 in, 72 in
Probe Length	18 in, 6 in, 12 in, 24 in, 9 in, 150 mm
Termination Connection Type	Stripped Leads
