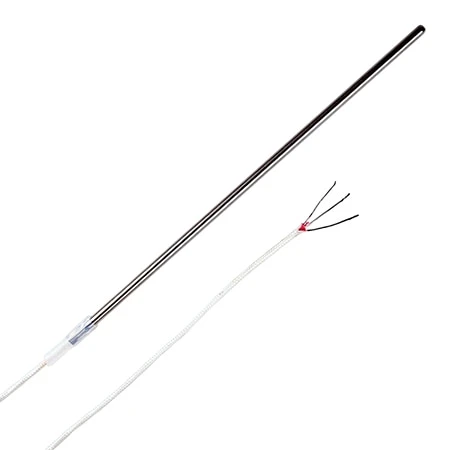

RTD Probe With Insulated Wire And Shrink-Tube Support

Original price was: $146.90.Current price is: $98.99.

Low temperature range: -50 to 250°C (-58 to 482°F)
High temperature range: -50 to 450°C (-58 to 842°F)
Extreme temperature range: -200 to 600°C (-328 to 1112°F)
Class A accuracy conforming to IEC 60751

Process Temperature Min

Additional Feature

Cable Length

Process Temperature Max

Probe Length

Probe Diameter

Sheath Material

Number Of Wires

Nominal Output

Process Temperature Range

Clear

SKU: PR-10E-3-100-1/8-6 Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Omega’s RTD probe with insulated lead wire has a shrink-tube strain relief support at the sheath/wire transition to provide wire flexibility and durability. This 316 stainless steel probe is offered in 2-, 3-, or 4-wire configuration. This is available in three temperature ranges covering -200°C to 600°C (-328 to 1112°F) to accommodate your specific temperature needs. Applications for this probe include liquid immersion, slurries and emulsions, granular material measurements, as well as temperature monitoring of heat bars, kilns, and pipes.

Process Temperature Min	-200, -50
Additional Feature	none, 198 in leads
Wire Gauge	26 AWG
Cable Insulation	PFA
Accuracy	Class A per IEC60751
Sensor Application	Immersion Probe
Process Temperature Unit	°C
Category	RTD
Cable Length	40 in, 198 in, 134 in
Process Temperature Max	600, 450, 250
Probe Length	6 in, 12 in, 18 in, 2 in, 24 in, 3 in, 4 in, 9 in, 10 in
Probe Diameter	0.125 in, 0.250 in, 0.187 in
Sheath Material	316 Stainless Steel, 304 Stainless Steel
Number Of Wires	3, 4, 2
Nominal Output	100 Ω, 100Ω, 1000 Ω
Process Temperature Range	-200 to 600°C (-328 to 1112°F), -50 to 450°C (-58 to 842°F), -50 to 250°C (-58 to 482°F)
Termination Connection Type	Stripped Leads
