RTD Probe With Stainless Steel Overbraid
Original price was: $190.61.$97.99Current price is: $97.99.
- Low temperature range: -50 to 250°C (-58 to 482°F)
- High temperature range: -50 to 450°C (-58 to 842°F)
- Extreme temperature range: -200 to 600°C (-328 to 1112°F)
- Class A accuracy conforming to IEC 60751
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

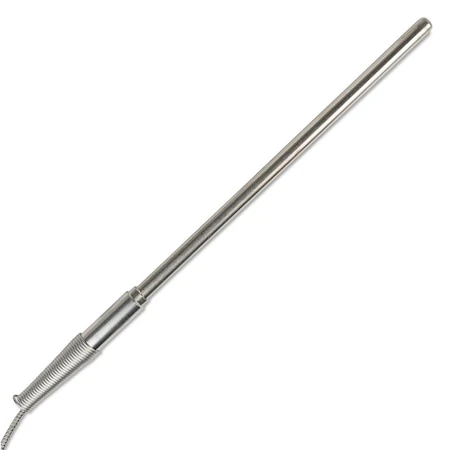

This Omega RTD probe features stainless steel overbraid over PFA-coated wires, to provide resistance to abrasion, along with transition-style junction. This is ideal for environments where the wire is going to be moved continually, or where the wire may come in contact with sharp, potentially damaging objects. This can be ordered with PT100 Ω or PT1000 Ω RTD element.
| Process Temperature Min | -200, -50 |
|---|---|
| Process Temperature Unit | °C |
| Wire Gauge | 26 AWG |
| Cable Insulation | PFA |
| Sheath Material | 316 Stainless Steel |
| Nominal Output | 100 Ω |
| Accuracy | Class A per IEC60751 |
| Sensor Application | Immersion Probe |
| Category | RTD |
| Process Temperature Max | 600, 450, 250 |
| Additional Feature | none, 300 in. wire leads |
| Cable Length | 40 in, 300 in |
| Probe Length | 6 in, 24 in, 12 in |
| Probe Diameter | 0.250 in, 0.187 in, 0.125 in |
| Number Of Wires | 3, 2 |
| Process Temperature Range | -200 to 600°C (-328 to 1112°F), -50 to 450°C (-58 to 842°F), -50 to 250°C (-58 to 482°F) |
| Termination Connection Type | Stripped Leads |
