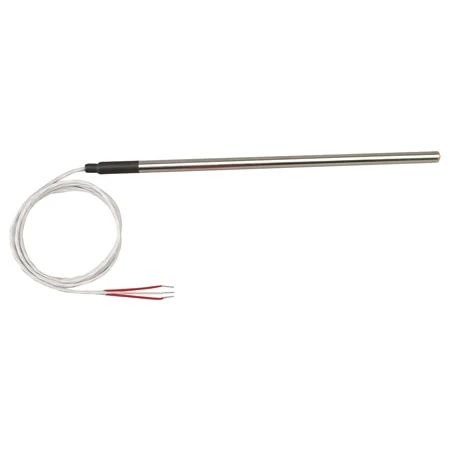

RTD Probes With Copper Tip And Lead Wires
Original price was: $150.07.$99.99Current price is: $99.99.
- Sensor Includes a Copper Tip Which Improves Thermal Response Time to 2 Seconds or Less (63% Response Time in Water Flowing at 3 Feet per Second).
- Perfect for Use in Thermowells or as a Direct Immersion Sensor.
- Can be Made in Many Sensor Configurations, and Can Be Used With a Wide Variety of Fittings and Accessories
- Sensor Contains a Precision 100 Ohm Class A DIN Platinum Element
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
The PRCU sensor can be customized to function like many of our immersion sensor designs such as the PR-10 Immersion Probe, PR-13 Quick Disconnect Probes, PR-12,14,18 or 19 Spring Loaded Probes with Connection Heads.
| Number Of Wires | 3, 4 |
|---|---|
| Process Temperature Max | 260 |
| Cable Insulation | PFA |
| Sheath Material | 304 Stainless Steel with Copper Tip |
| Nominal Resistance | 100 Ω |
| Accuracy | Class A per IEC60751 |
| Sensor Application | Immersion Probe with Fast Response Time |
| Process Temperature Range | -50 to 260°C (-58 to 500°F) |
| Process Temperature Min | -50 |
| Probe Diameter | 0.250 in, 0.187 in, 4.50 mm, 6.00 mm |
| Process Temperature Unit | °C |
| Category | RTD |
| Additional Feature | none, With Shrink Tube |
| Termination Connection Type | Stripped Leads, MTP Connector, HH804 Connector, 3-Prong Standard Connector |
| Cable Length | 40 in, 72 in, 120 in |
| Probe Length | 24 in, 12 in, 18 in, 6 in, 9 in, 150 mm, 225 mm, 300 mm |
| Wire Gauge | 26 AWG |
