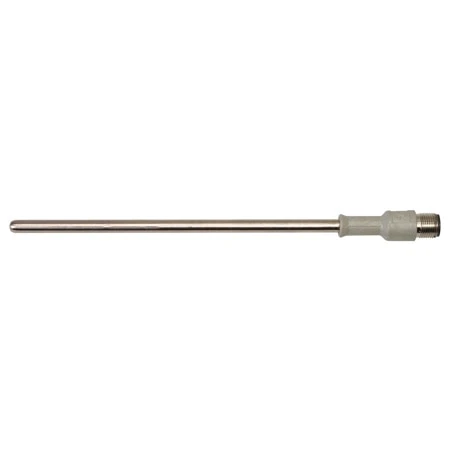

RTD Probes With High Temperature Molded M12 Connectors

Original price was: $114.79.Current price is: $80.35.

Bendable Probes [After the First 2′ (50 mm) of Probe Tip] Using a Minimum Suggested Bend Radius of 2x the Probe Diameter
Vibration Tested to MIL-STD-202G, Method 204D, Condition A (10g’s from 10 to 500 Hz) (6 inch or Shorter Length)
-50 to 500°C (-58 to 932°F) Probe Temperature Range
-50 to 260°C (-58 to 500°F) Connector Temperature Range

Nominal Output

Probe Diameter

Probe Length

Additional Feature

Clear

SKU: PR-31-3-100-A-1/4-0600-M12-2 Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The PR-31 series RTD temperature sensors feature a high temperature connector for application environments of up to
260°C (500°F). The new PR-31 series is contructed with our mineral insulated cable to offer the option of bending the probe in the field. The suggested bend radius is 2x the probe diameter.
The PR-31 series are ideal temperature probes for the automation industry, food and beverage, chemical and industrial markets.
These RTD sensors can be used in any 2, 3 or 4-wire application by selecting one of the two available wiring arrangements (see the wiring diagrams below) and using only those wires needed for your connection. This allows for simplified, trouble free installation with any existing application. This also allows the PR-31 series sensor to be used for a wide variety of replacement applications since it can be connected as-is with just about any measurement or control equipment available when combined with a 4-pin female M12 connector extension or patch cable.

Nominal Output	100 Ω, 1000 Ω
Probe Diameter	0.25 in, 0.125 in, 6 mm, 3 mm
Probe Length	6 in, 12 in, 150 mm, 250 mm, 3 in, 4 in, 8 in, 100 mm
Additional Feature	Wiring Option 2 (Per Diagram), Wiring Option 1 (Per Diagram)
Category	RTD
Process Temperature Unit	°C
Process Temperature Min	-50
Process Temperature Max	500
Process Temperature Range	-50 to 500°C (-58 to 932°F)
Sensor Application	Immersion Probe
Accuracy	Class A per IEC60751
Number of Wires	4
Sheath Material	316 Stainless Steel
Termination Connection Type	M12 Connector
