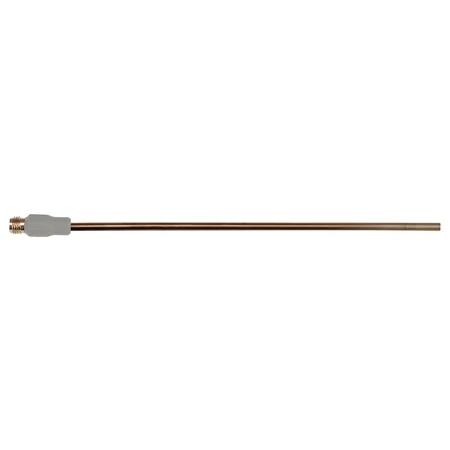

RTD Probes With Molded M8 Connectors
Original price was: $58.93.$41.25Current price is: $41.25.
- Available in the Following Resistance Specifications:
- Pt100 Class A
- Pt100 Class B
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
 |
Omega’s PR-23 RTD sensor provides the convenience of a RTD sensor with an integral connector, along with a small size for use in tight spaces. When used with an optional M8C extension cable, the PR-23 sensor proves a complete sensor solution for a wide variety of temperature sensing applications.
Designed around the IEC60751 standard, the PR-23 series sensor is available with a 3-wire PT100 (100 ohms at 0°C) or 2-wire Pt1000 (1000 ohms at 0°C) resistance specification (see wiring diagrams for connector pin-out), and with Class A (Pt100 only) or Class B accuracies. This makes the PR-23 sensor compatible with most of the measurement and control equipment in use today.
The PR-23 line of RTD sensors are available in a variety of metric and fractional sizes, including 1/8″ diameter probes in 6″, 9″ and 12″ long standard lengths and 3mm diameter probes in 100, 150, 250 and 350mm long standard lengths.
| Process Temperature Min | -30, -50 |
|---|---|
| Process Temperature Max | 350, 500 |
| Process Temperature Range | -30 to 350°C (-22 to 622°F), -50 to 500°C (-58 to 932°F) |
| Accuracy | Class A per IEC60751, Class B per IEC60751 |
| Nominal Output | 100 Ω, 1000 Ω |
| Number of Wires | 3, 2 |
| Probe Diameter | 0.125 in, 3 mm |
| Probe Length | 3 in, 4 in, 6 in, 9 in, 12 in, 100 mm, 250 mm, 350 mm, 2 in, 150 mm |
| Category | RTD |
| Process Temperature Unit | °C |
| Sensor Application | Immersion Probe |
| Process Connection Size | None |
| Sheath Material | 316 Stainless Steel |
| Termination Connection Type | M8 Connector |
