RTD Probes With Mounting Threads And Lead Wire

Original price was: $161.49.Current price is: $95.99.

Sensor Contains a Precision 100 Ohm Class A DIN Platinum Element
Temperature Coefficient (Alpha) = .00385 ohm/ohm/°C
3-Wire Configuration with PFA Insulated and Jacketed Lead Wire and Miniature 3-Pin Connector with Mating Connector
Temperature Range -200 to 750ºC (Cable to 260ºC)

Cable Length

Termination Connection Type

Clear

SKU: RTD-810-OTP Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

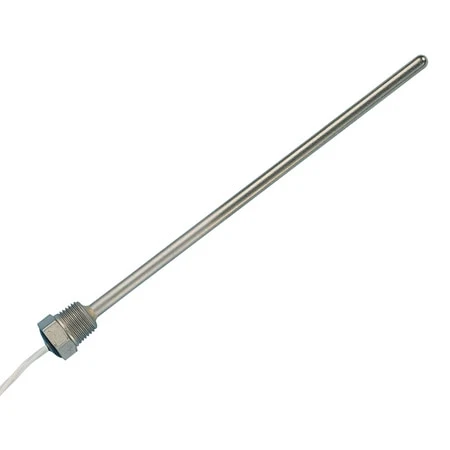

This immersion sensor has a closed ended stainless steel tube, 1/8NPT mounting fitting, 100 Ohm Class A DIN platinum element with PFA insulated & jacketed leads and miniature connector. Its rugged design is ideally suited for fluid measurements and pressurized systems where the sensor must mount into a threaded port. With a maximum temperature rating of 750ºC, this sensor can be used in a wide variety of applications. Combine the RTD-810 with any of the Omega extension cables, hand-held meters, controllers, displays or thermometers to form a complete measurement and control system.

Cable Length	40 in, 120 in
Termination Connection Type	3-Prong Standard Connector, 3-Prong Miniature Connector, HH804 Connector, Male Audio connector, TA4F Connector
Category	RTD
Process Temperature Unit	°C
Process Temperature Min	-200
Process Temperature Max	750
Process Temperature Range	-200 to 750°C (-328 to 1380°F)
Sensor Application	Immersion Probe
Process Connection Size	1/8" NPT
Accuracy	Class A per IEC60751
Nominal Output	100 Ω
Number Of Wires	3
Sheath Material	304 Stainless Steel
Probe Diameter	0.125 in
Probe Length	4.5 in
Cable Insulation	PFA
