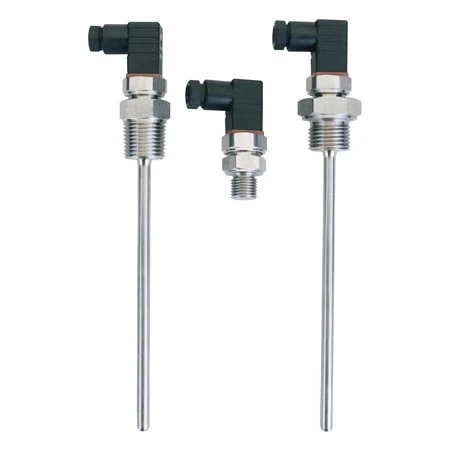

RTD Probes With Mounting Threads & Micro-DIN Connectors

Original price was: $84.14.Current price is: $58.90.

IP65 Rated
316 Stainless Steel
Pt100 and Pt1000 Options Available
High Accuracy, with Pt100 Class A, 4-Wire Construction as Standard

Process Temperature Unit

Process Temperature Min

Process Temperature Max

Process Temperature Range

Sensor Application

Process Connection Size

Accuracy

Nominal Output

Number of Wires

Sheath Material

Probe Diameter

Probe Length

Termination Connection Type

Clear

SKU: PR-24-CON-5M-HH804 Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Omega’s PR-24 Series RTD probes feature industry standard micro-DIN connectors for ease of installation and fast replacement. The IP65 rated connector with an all stainless steel sheath and integral thread construction is ideally suited for use in demanding industrial environments. Standard process threads are G1/4″, G1/2″, 1/4″ NPT and 1/2″ NPT other threads are available on request.

Process Temperature Unit	Not applicable, °C
Process Temperature Min	Not applicable, -30, -50
Process Temperature Max	Not applicable, 250, 500
Process Temperature Range	Not applicable, -30 to 250°C (-22 to 480°F), -50 to 500°C (-58 to 932°F)
Sensor Application	Not Applicable, Immersion Probe
Process Connection Size	Not Applicable, G 1/4" BSPP, 1/2" NPT, 1/4" NPT, G 1/2" BSPP
Accuracy	Not Applicable, Class A per IEC60751
Nominal Output	Not Applicable, 100 Ω, 1000 Ω
Number of Wires	Not Applicable, 2, 3, 4
Sheath Material	Not Applicable, 316 Stainless Steel
Probe Diameter	Not Applicable, 0.25 in, 6 mm, None, 0.125 in, 3 mm
Probe Length	5 m, 9 in, 4 in, 6 in, 2 in, 50 mm, None, 12 in, 18 in, 3 in, 150 mm, 300 mm, 350 mm, 450 mm, 25 mm, 250 mm
Termination Connection Type	HH804 Connector, Micro-DIN Connector
Category	RTD
