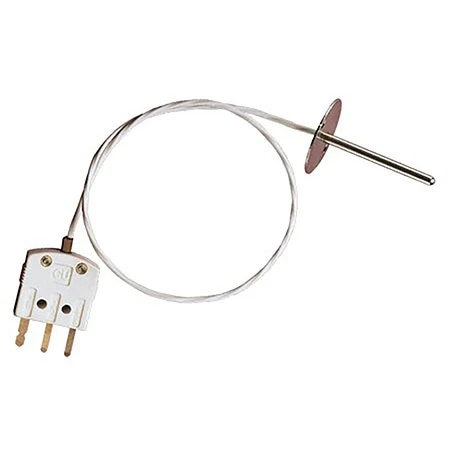

RTD Sensors For Specialized Applications
Original price was: $175.04.$98.99Current price is: $98.99.
- 100 Ohm, Alpha=.00385 Pt RTD Sensor
- Contains a ‘Class- A’, PT100 Platinum RTD Sensing Element With a Resistance Vs. Temperature Curve Conforming to IEC60751 (Temperature Coefficient (Alpha) = .00385 ohm/ohm/°C)
- Sensor Supplied with 3 feet of PFA-Insulated and Jacketed Cable
- Subminiature MTP Series Connector Standard (Other Connectors Available)
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
Precision RTD probes specialized for laboratory applications are available in 6 unique configurations to suite a variety of application needs. All units contain a 100 Ohm, Class A Platinum RTD Sensor and are supplied with an “MTP” style, 3-Pin Connector.
| Process Temperature Min | -50, -29 |
|---|---|
| Process Temperature Max | 230, 180 |
| Process Temperature Range | -50 to 230°C (-58 to 446°F), -29 to 180°C (-20 to 356°F) |
| Sheath Material | 304 Stainless Steel, Glass-filled Nylon |
| Probe Diameter | 0.500 in, 0.125 in |
| Probe Length | 1.25 in, 1.50 in |
| Termination Connection Type | MTP Standard Connector, HH804 Connector, Spade Lugs, 3-Prong Standard Connector, 3-Prong Miniature Connector, Stripped Leads |
| Category | RTD |
| Process Temperature Unit | °C |
| Sensor Application | Air Probe |
| Accuracy | Class A per IEC60751 |
| Nominal Resistance | 100 Ω |
| Number Of Wires | 3 |
| Cable Insulation | PFA |
| Wire Gauge | 26 AWG |
| Cable Length | 40 in |
