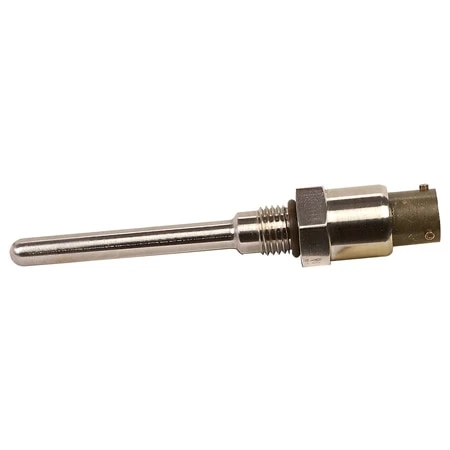

RTD & Thermistor Temp Sensors For Oil, Fuel & Other Liquids

Original price was: $387.18.Current price is: $96.99.

Mounts into a Standard -20 UNF Port
All Welded Stainless Steel Construction in Wetted Area
MS3112E8-4P Circular Connector Mates With a PT06E8-4S Mating Connector
Available in 2 Platinum RTD and 4 Thermistor Output Configurations

Category

Accuracy

Nominal Output

Number of Wires

Probe Length

Clear

SKU: PR-30-PT100A-0250 Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Temperature Sensors for Oil, Fuel or Other Liquids”

Category	RTD, Thermistor
Accuracy	Class A per IEC60751, ±0.2°C
Nominal Output	100 Ω, 1000 Ω, 2252 Ω @ 25°C
Number of Wires	4, 2
Probe Length	2.5 in, 6 in, 6.5 in, 1 in
Process Temperature Unit	°C
Process Temperature Min	-50
Process Temperature Max	200
Process Temperature Range	-50 to 200°C (-58 to 212°F)
Sensor Application	Immersion Probe
Process Connection Size	7/16"-20 UNF-2A
Sheath Material	304 Stainless Steel
Probe Diameter	0.25 in
Termination Connection Type	MS3112E8-4P Circular Connector
