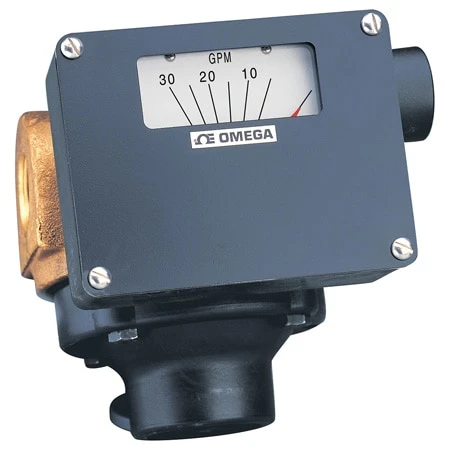

Rugged, Economical Flowmeters Capacity: 0.2 To 90 GPM Of Water

Original price was: $301.00.Current price is: $96.99.

±5% Full Scale Accuracy
±1% Reading Repeatability
Built-in Signal Switch
Vane or Piston Construction

Liquid Flow Range

Process Connection Size

Wetted Materials

Max Operating Pressure

Features

Clear

SKU: FL-W01 Categories: Flow Instruments, Flow Meters, Variable Area Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FL-W Series of water flow monitors can be used with flows from 1 gph up to 90 gpm. These flowmeters utilize the fluid’s movement to actuate a swinging vane (or piston), which drives the scale pointer and triggers the signal switch.

SPECIFICATIONS:
Signal Switch: 3-Wire SPDT, 15 A @ 125 Vac
Wetted Parts: 300 Series SS, and Polysulfone and Brass
Seals: EPR Brass (vane models), PTFE (piston models)
Pressure Drop: 2.2 psi (vane), 2 to 5 psi (piston)
Deadband: 7% of max. flow

Model No.	Flow Rate (GPM)	Display Increments	Port Size	Design Type
FL-W01	0 to 1	0.2 GPM	3/4 FNPT	Piston
FL-W02	0 to 2	0.25 GPM	3/4 FNPT	Piston
FL-W05	0 to 5	1 GPM	3/4 FNPT	Piston
FL-W10	0 to 10	2 GPM	3/4 FNPT	Piston
FL-W15	0 to 15	3 GPM	3/4 FNPT	Piston
FL-W20	0 to 20	4 GPM	3/4 FNPT	Piston
FL-W30	0 to 30	5 GPM	1-1/2 FNPT	Vane
FL-W40	0 to 40	5 GPM	1-1/2 FNPT	Vane
FL-W50	0 to 50	10 GPM	1-1/2 FNPT	Vane
FL-W60	0 to 60	10 GPM	1-1/2 FNPT	Vane
FL-W70	0 to 70	10 GPM	2 FNPT	Vane
FL-W80	10 to 80	10 GPM	2 FNPT	Vane
FL-W90	20 to 90	10 GPM	2 FNPT	Vane

Liquid Flow Range	0.1 to 1 GPM, 0.2 to 2 GPM, 0.5 to 5 GPM, 1 to 10 GPM, 1.5 to 15 GPM, 2 to 20 GPM, 3 to 30 GPM, 4 to 40 GPM, 5 to 50 GPM, 6 to 60 GPM, 7 to 70 GPM, 8 to 80 GPM, 9 to 90 GPM
Process Connection Size	3/4", 1 1/2", 2"
Wetted Materials	300 SS, Polysulfone, Brass, PTFE, 300 SS, Polysulfone, Brass, EPR
Max Operating Pressure	150 psi, 300 psi
Features	Piston Design Type, Vane Design Type
Category	Meter
Media Type	Water
Accuracy	±5%
Process Connection Type	NPT Female
Max Process Temperature	93 °C (200 °F)
Scale	Direct Read
Valve Included	No
