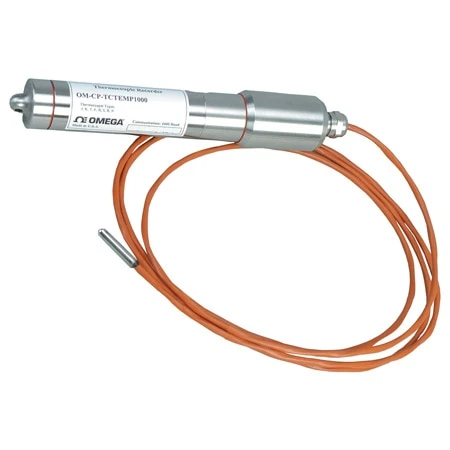

Rugged, Submersible Thermocouple Recorder

The OM-CP-TCTEMP1000 is a rugged, waterproof, battery powered, thermocouple based temperature recorder. This is a stand-alone, compact, portable, easy to use device that will measure and record up to 16,383 measurements per channel. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. Its real time clock ensures that all the data is time and date stamped. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere.

The OM-CP-TCTEMP1000 makes data retrieval quick and easy even from harsh environments. Simply plug it into an available COM port and our user-friendly software does the rest. The Windows software converts your PC into a real time strip chart recorder. Data can be printed in graphical or tabular format and can also be exported to a text or Microsoft Excel file.

Specifications
Internal Channel
Temperature Range: -40 to 80°C (-40 to 176°F)
Temperature Resolution: 0.1°C
Temperature Accuracy: ±0.5°C (0 to 50°C)
Remote Channel Thermocouple Types:
J, K, T, E, R, S, B, N (36′ Type K T/C supplied with unit), other
T/C’s available, contact the Data Aquisition Department
Thermocouple Connection: Female subminiature (SMP)
Cold Junction Compensation: Automatic based on internal channel
Start Time: Software programamble start time and date,
up to six months in advance
Real Time Recording: May be used with PC to
monitor and record data in real time
Memory: 16,383 readings per channel
Reading Interval: 1 reading every
2 seconds to 1 every 12 hours
Calibration Date: Digital calibration through software
Data Format: Date and time stamped, °C, °F, K, °R, mV
Time Accuracy: ±1 minute/month at 20°C, RS-232 port not in use
Computer Interface: PC serial or USB (interface cable required) 2400 baud
Power: 3.6 V lithium battery (included)
Battery Life: 1 year typical (1 minute reading rate @ 25°C)
Software: XP SP3/Vista 7 and 8 (32-bit and 64-bit)
Operating Environment: -40 to 80°C (-40 to 176°F)
0 to 100% RH non-condensing
Submersible: Up to 45 m (150′)
Dimensions: 31 mm dia x 188 mm L (1.2 x 7.4′)
Weight: 380 g (13 oz)
