Sanitary, Rangeable, Pressure Transmitters With Display

Original price was: $359.00.Current price is: $96.99.

Pressure Transducer for Sanitary or CIP (Clean-in-Place) Applications
Meets 3-A sanitary standards for food, beverage, dairy, and pharmaceutical applications
IP67 316 SS enclosure protects against harsh environments
5 digit display for easy monitoring

Pressure Range

Pressure Port Size

Clear

SKU: PX3005K01-100GI Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

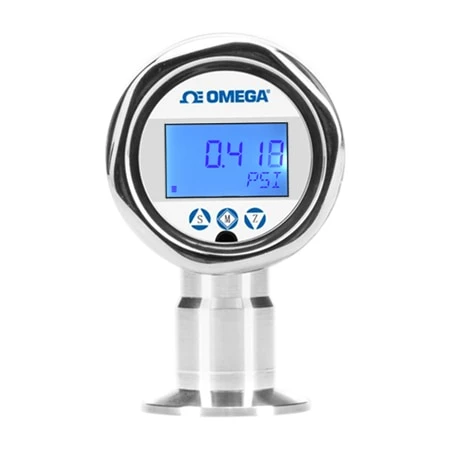

Omega’s PX3005K02 is a compact, rangeable, digital sanitary pressure transmitter that is ideal for monitoring pressures in food and pharmaceutical industries where a flush diaphragm design is required. The rugged 316 stainless-steel enclosure is IP67 rated making it suitable for washdown environments. A 5-digit backlit LCD allows for full precision representation of process variable. This hygienic design has been issued 3-A symbol authorization and meets the requirements of the 3-A Sanitary Standards making it the best choice for process automation and tank level applications where consistent reliable pressure management are essential.

Sanitary, Rangeable, Pressure Transmitters With Display -Omega Engineering Sales Store PX3005K dia

Range Limits
Nominal Value		Minimum Span		Upper (URL)		Lower (URL)		Over Range Limit
kPa	PSI	kPa	PSI	kPa	PSI	kPa	PSI	kPa	PSI
20	3	10	1.5	20	3	-20	-3	30	4.5
35	5	20	3	35	5	-35	-5	52.5	7.5
100	15	35	5	100	15	VAC	VAC	150	22
200	30	100	15	200	30	VAC	VAC	300	45
700	100	200	30	700	100	VAC	VAC	1050	150
MPa	PSI	MPa	PSI	MPa	PSI	MPa	PSI	MPa	PSI
1	150	0.5	75	1	150	VAC	VAC	1.5	220
1.7	250	1	150	1.7	250	VAC	VAC	2.55	370
3.5	500	1.7	250	3.5	500	VAC	VAC	5.25	750

Pressure Range	-15 to 100 psi, -3 to 3 psi, -5 to 5 psi, -15 to 15 psi, -15 to 30 psi, -15 to 150 psi, -15 to 250 psi, -15 to 300 psi
Pressure Port Size	1.5", 2"
Pressure Type	Compound Gauge
Accuracy Class	0.1% to 0.25%
Accuracy Value(compensated range)	±0.2%
Output Signal	Current
Electrical output	4 to 20 mA
Pressure Port Type	Tri-Clamp
Connection/Termination	M12
Operating Temperature Range	-20 to 70 °C (-4 to 160 °F)
Additional Features	Rangable with 5 digit display
