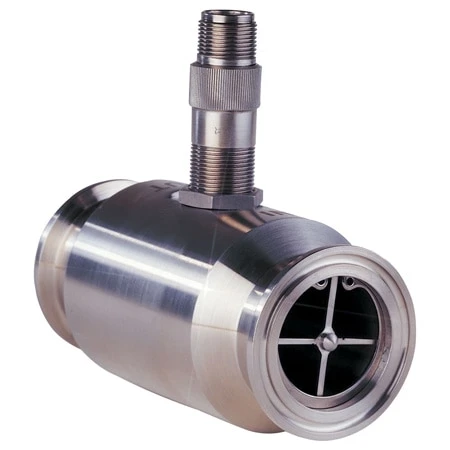

Sanitary Turbine Flow Meters W/ Tri-Clamp Connection

Original price was: $326.00.Current price is: $99.99.

Compliant with the ASME Bioprocessing Equipment Standard BPE-2019
11 Sizes Available, from ¼ to 3′
Flow Rates from 0.35 to 650 GPM
Suitable For Cleaning Out Of Place (COP)

Flow Range

Max Operating Pressure

Process Connection Size

Clear

SKU: FTB-405A Categories: Flow Instruments, Flow Meters, Turbine Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The Omega FTB400 sanitary design turbine flow meters are designed and manufactured to be compliant with the ASME Bioprocessing Equipment Standard BPE-2019 for measurement of process liquids where high sanitary standards are required. ASME-BPE-2019 is the leading Standard on how to design and build equipment used in the production of biopharmaceuticals. ASME-BPE-2019 is the leading Standard on how to design and build equipment used in the production of biopharmaceuticals. This series includes 11 sizes, ¼” to 3” with standard Tri-Clamp™ fittings, covering flow rates for 0.35 to 650 GPM.

SPECIFICATIONS
Accuracy & Linearity: ±0.5% of reading or better
Repeatability: ±0.1% of reading or better
Temperature Range: -268 to 232°C (-450 to 450°F)
Signal Output: 10 mV rms or greater into a 10 kΩ load at minimum flowrate
Materials of Construction: 316 SS except as noted below:
    Rotor: 17-4 PH SS
    Retaining Rings: 15-7 MO PH SS
    Bearings: Hard carbon composite

Model No.	Tri-Grip™ Size	Flowmeter Size	Linear Flow Range (GPM)	Length mm (in)	Nominal K-Factor Pulses/Gal	Weight kg (lb)
FTB-401A	1½”	1/4″	0.35 to 3.5	90 (3.56)	15,000	1.4 (3)
FTB-402A	1½”	3/8″	0.75 to 7.5	90 (3.56)	9,000	1.4 (3)
FTB-403A	1½”	1/2″	1.25 to 9.5	90 (3.56)	5,800	1.4 (3)
FTB-404A	1½”	5/8″	1.75 to 16	90 (3.56)	5,300	1.4 (3)
FTB-405A	1½”	3/4″	2.5 to 29	83 (3.25)	1,035	1.4 (3)
FTB-406A	1½”	1″	4 to 60	90 (3.56)	670	1.4 (3)
FTB-407A	1½”	1¼”	6 to 93	117 (4.59)	320	2.3 (5)
FTB-408A	1½”	1½”	8 to 130	117 (4.59)	250	2.7 (6)
FTB-409A	2″	2″	15 to 225	154 (6.06)	126	3.2 (7)
FTB-410A	3″	2½”	25 to 400	254 (10.0)	75	3.6 (8)
FTB-411A	4″	3″	40 to 650	254 (10.0)	45	4.5 (10)

Flow Range	2.5 to 29 GPM, 0.35 to 3.5 GPM, 0.75 to 7.5 GPM, 1.25 to 9.5 GPM, 1.75 to 16 GPM, 4 to 60 GPM, 6 to 93 GPM, 8 to 130 GPM, 15 to 225 GPM, 25 to 400 GPM, 40 to 650 GPM
Max Operating Pressure	500 psi, 450 psi, 350 psi, 200 psi
Process Connection Size	1-1/2", 2", 3", 4"
Category	Meter
Media Type	Liquid
Accuracy	±0.5%
Output Signal	Sinusoidal Wave
Max Process Temperature	232 °C (450 °F)
Wetted Materials	316 SS, 17-4 SS, 15-7 SS, Hard Carbon Composite
Process Connection Type	Tri-Clamp
Display	No Display
Features	Compliant with the ASME Bioprocessing Equipment Standard BPE-2019
