Sale!

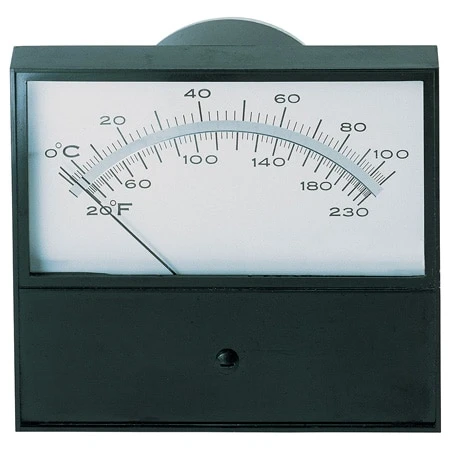

Self-Power Anlg. Pyrometer With PHEN Front For Temp. Measurement

Original price was: $343.00.Current price is: $98.99.

Self-Powered
Taut Band MechanismStandard
Phenolic Fronts
Glass Windows

Input Type

Display Type

Other Features

Clear

SKU: 7045-E-300 Categories: Control & Monitoring, Meters, Temperature Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Analog Pyrometer OMEGA ® 7000 Series have thermocouple ranges calibrated for 10 ohms external resistance and are supplied with an adjustable 10 ohm resistor for use with thermocouples of lower resistance.

Thermocouple Specifications Thermistor type copper error compensation. Current sensitivity approximately 4 ohms per millivolt (250 microamperes). Automatic bimetal cold junction compensation for changes in ambient temperature. Mirrored scales with knife edge pointers are standard on all pyrometer models.

SPECIFICATIONS
Accuracy: ±2%
Tracking: None
Balance: ±1%
Repeatability (Taut Band Mechanism): <¼%

Input Type	E Type Thermocouple, J Type Thermocouple, K Type Thermocouple, R Type Thermocouple, T Type Thermocouple, S Type Thermocouple
Display Type	4' Parallax Mirror Display, 5' Parallax Mirror Display
Other Features	300F, 1000F, 225F, 250F, 500F, 600F, 800F, 1500F, 2000F, 2500F, 3000F, 100F
Measure Type	Temperature
Number of Inputs	1
DIN Size	Benchtop
Number of Output	0
Output Type	Not Applicable
Max Sampling Rate	1 Hz
Supply Voltage Type	Self-Powered
Supply Voltage	Not Applicable
Communications Protocol	Not Applicable
Accuracy Rating	Good
