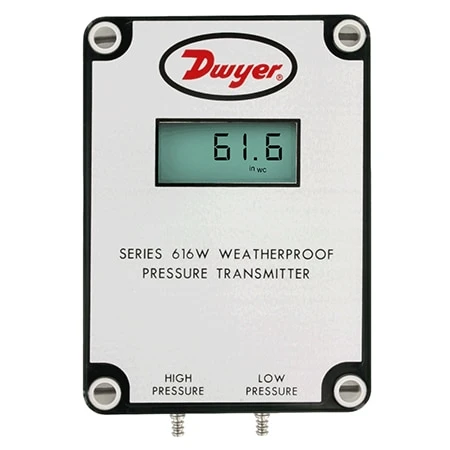

SERIES 616W DIFFERENTIAL PRESSURE TRANSMITTER

Original price was: $311.00.Current price is: $99.99.

NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Easy to read LCD display provides immediate local alerts allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
Zero and span controls provides easy calibration checks and shorter installation time to get device running and monitoring
Product applications include dust collection, outdoor HVAC, and roof-top equipment

Additional Features

Pressure Range

Clear

SKU: 616W-2 Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Dwyer Instruments is now a DwyerOmega product brand

Overview

Positive, negative and differential pressures can be measured within a full span accuracy of +/- 0.25 with the Series 616W Differential Pressure Transmitter. Units are enclosed in a polycarbonate case, rated NEMA 4X (IP66) and operate by sensing the pressure of air and compatible gases then sending a standard 4-20 mA output signal. Design enables operation in 2-wire current loops. A wide range of models are available factory calibrated to specific ranges. The span and zero controls are for use when checking calibration. They are not intended for re-ranging to a significantly different span. The LCD display allows local indication of pressure.

DS-616W-dims
DS-616W-wiring
DS-616W-order

Additional Features	Not Applicable, LCD Display
Pressure Range	0 to 6 inH2O, -5 to 5 inH2O, -10 to 10 inH2O, 0 to 1.5 kPa, 0 to 10 inH2O, 0 to 2.5 kPa, 0 to 20 inH2O, 0 to 5 kPa, 0 to 40 inH2O, 0 to 10 kPa, 0 to 100 inH2O
Pressure Type	Differential
Accuracy Class	0.1% to 0.25%
Output Signal	Current
Electrical output	4 to 20 mA
Pressure Port Size	3/16"
Pressure Port Type	Barbed Fitting
Connection/Termination	Terminal Block
Operating Temperature Range	-20 to 70 °C (-4 to 160 °F)
Accuracy Value	±0.25%
