These probes can be used as stand-alone sensors, or they can be configured with a variety of termination options. When combined with controllers, indicators, or precision thermometers they become the heart of complete measurement systems.

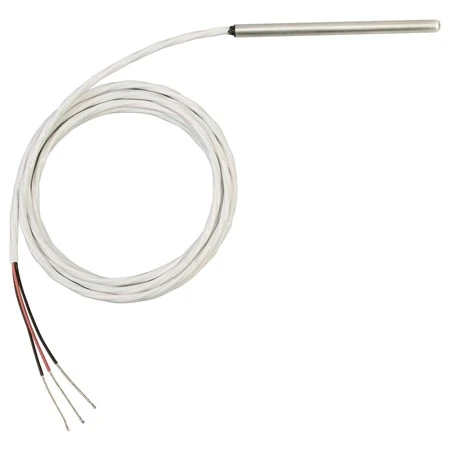

Short RTD Probe
$85.01 Original price was: $85.01.$59.51Current price is: $59.51.
- Please refer to replacement part number PR-10E-3-100-3/16-2
SKU: PR-20-2-100-3/16-2-E-T Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

These general purpose 2″ long RTD Pt100 sensors can be used in most liquid and air applications. When used in liquid environments, the epoxy-sealed end should not be immersed directly into the liquid. Compression fittings are also available for installation.
| Process Temperature Range | -50 to 260°C (-58 to 500°F), -50 to 450°C (-58 to 842°F) |
|---|---|
| Number Of Wires | 3, 4 |
| Probe Diameter | 0.187 in, 0.250 in |
| Cable Insulation | PFA, Fiberglass |
| Cable Length | 40 in, 120 in |
| Category | RTD |
| Sensor Application | Immersion Probe |
| Accuracy | Class A per IEC60751 |
| Nominal Resistance | 100 Ω |
| Sheath Material | 304 Stainless Steel |
| Probe Length | 2 in |
| Wire Gauge | 26 AWG |
| Termination Connection Type | Stripped Leads |
| Additional Feature | none |
