Side Mount Non-Magnetic Liquid Level Switches

Original price was: $376.00.Current price is: $98.99.

Rugged Industrial Design
Non-Magnetic Design– Suitable for Rusty Environments
15 A SPDT Switch Directly Controls Pump
For Side Mounting Only

Max Operating Pressure

Max Process Temperature

Wetted Materials

Process Connection Size

Clear

SKU: LV-1102A Categories: Control & Monitoring, Level Switches, Process Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

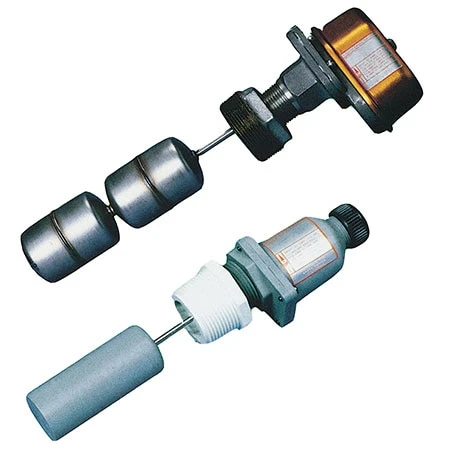

The LV-1100 and 1200 level switches feature a nonmagnetic design suitable for applications where magnetic particles (i.e., rust) are present. The LV-1100 series also features rugged metal construction and a buoyancy adjustment to allow the unit to be used with fluids down to SG (specific gravity) = 0.6. The LV-1200 series features plastic and 316 SS or Hastelloy^® C construction for more corrosive applications or where the low cost of plastic construction is an advantage.

SPECIFICATIONS
Relay Switch: SPDT 15 A @ 125 or 250 Vac; 10,000,000 operations median
Max Temperature/Pressure:
LV-1100 Series: 300 psig @ 82°C (180°F)
LV-1202: 50 psig @ 93°C (200°F), 100 psig @ 23°C (75°F)
LV-1201: 75 psig @ 23°C (75°F), 200 psig @ 10°C (50°F)
LV-1203: 50 psig @ 93°C (200°F), 100 psig @ 230°C (75°F)
Liquid Level Change to Actuate Switch: ¼”
Size:
LV-1100: Fits through 2 NPT hole
LV-1200: Fits through 1¼” hole
Water Resistant Strain Relief Fitting (LV-1200): For cable diameters 0.250″ ±0.025″

Max Operating Pressure	300 psi, 200 psi, 100 psi
Max Process Temperature	82 °C (180 °F), 10 °C (50 °F), 23 °C (75 °F)
Wetted Materials	316 SS, 302 SS, FKM, PTFE, Noryl, Brass, 316 SS, 304 SS, Phosphor Bronze, EPDM, Cork-chloroprene, Noryl, 316 SS, EPDM, Noryl, 316 SS, PPS, FKM, PVC, PPS, Hastelloy C, FKM
Process Connection Size	2", 1 1/4"
Media Type	Liquid
Process Connection Type	NPT Male
Switch Rating and Type	15 A SPDT
