Silicon-on-Sapphire Pressure Transmitters
Original price was: $352.00.$95.99Current price is: $95.99.
- Silicon-on-Sapphire Sensor Assures High Stability and Repeatability
- High Accuracy 0.2%
- IP65/NEMA 4 Stainless Steel Body
- Solid State Reliability
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
Description

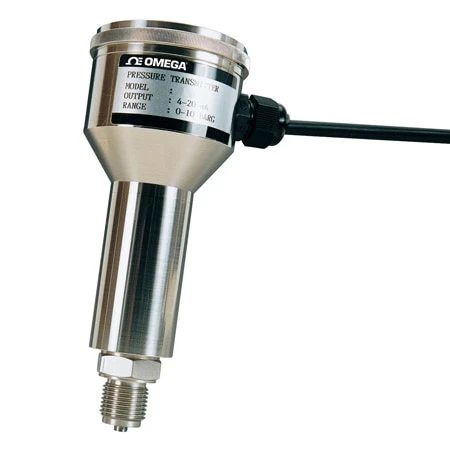

OMEGA’s PX920 Series are extremely tough process transmitters suitable for use in demanding process and industrial applications. Rugged stainless steel construction, featuring S.O.S. technology with a custom IC amplifier, give the PX920 series high stability, low drift and long life. Important features of this transmitter include easily accessible zero and span adjustment for simplified set-up and recalibration. SOS construction uses very stabile solid state silicon strain gages on a Sapphire carrier which is glass bonded to a titanium diaphragm. This combination provides a very durable transducer which has excellent stability over a wide temperature range. Additionally, the all titanium diaphragm and Stainless Steel wetted parts provide maximum durability and corrosion resistance to harsh industrial chemicals.
| Pressure Range | 0 to 300 psi, 0 to 100 psi, 0 to 150 psi, 0 to 15,000 psi, 0 to 200 psi, 0 to -30 inHg, 0 to 600 psi |
|---|---|
| Pressure Type | Gauge, Vacuum |
| Accuracy Class | 0.1% to 0.25% |
| Accuracy Value(compensated range) | ±0.2% |
| Output Signal | Current |
| Electrical output | 4 to 20 mA |
| Pressure Port Size | 1/2" |
| Pressure Port Type | NPT Male |
| Connection/Termination | Internal Terminal Strip |
| Operating Temperature Range | -20 to 85 °C (-4 to 185 °F) |
