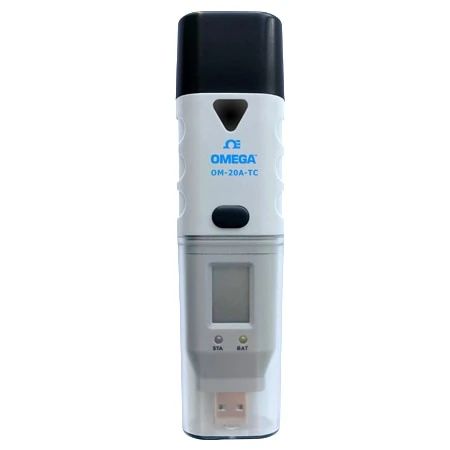

Single Channel USB Thermocouple Data Logger With LCD Display

Description

New OM-20A-T thermocouple data logger with LCD Display measures and stores over 85,000 temperature readings from either a Type K, Type J, Type S, or Type T&R thermocouple which plugs into a miniature female thermocouple receptacle at the base of the unit.

This data logger’s compact size make it an ideal choice for any portable application including monitoring temperature in factory, storage, testing process, etc. User needs to install USB driver and PC Software that run under Windows XP, Vista, 7, 8 or 10 (32 bit and 64 bit Versions), and use the software to setup sample rate, high/low alarm limit and start/stop method, and download data to PC, etc. And then view, analyze and print the data, or export other file formats (txt, xsl, csv, bmp, jpg).

Especially, in professional applications, user can set access password, name the channel, enable/disable channel, input calibration data for each channel, disable LED indication for saving power, and select sample mode (Instant, Average, Maximum and Minimum), etc.

Specifications

Input Type: Support 5 Thermocouple Types K, J, S, T & R
Accuracy: ±0.5% Reading ±1 Deg_C
Resolution: 0.1 Deg_C
Temperature Units: °C or °F
Logging Interval: 2Secs-24Hrs, selectable in software
Memory Capacity: 85,000 Points
Thermocouple Connection: Female sub-miniature thermocouple connector
LCD Display: 4 Digits
Battery Type: Lithium
Battery Life: Up to 2 years
Operating Temperature: -35 Deg_C to 80 Deg_C
Software: Windows XP, Vista, 7, 8 or 10 (32 bit and 64 bit Versions)
Case Material: IP40
