Single Sensor Controller

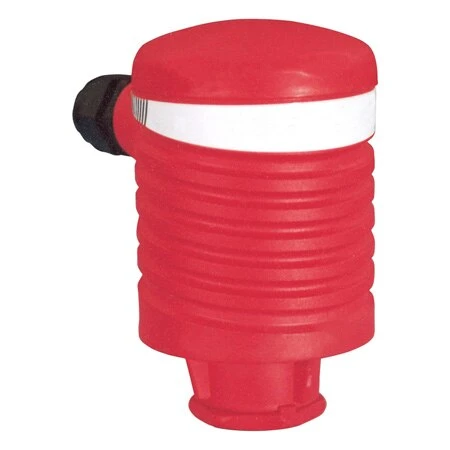

OMEGA’s ac single sensor model FLCN-110 controller offers features normally found in much larger controllers. The adjustable time delay relay, invert switch, and LED status enunciators all maximize the flexibility of this powerful controller. Low flow alarm systems can easily be configured with this 120 to 240 Vac controller. The controller is made of reinforced polypropylene. The controller swivels on its base for easy conduit alignment.

SPECIFICATIONS
Voltage Input: Selectable, 120 or 240 Vac, 50 to 60 Hz.
Max Consumption: 5 watts
Relay Output: Isolated and sealed single pole double throw (SPDT) relay, Form C
Switching Mode: Selectable, NO or NC states
Max. Relay Switching Voltage: 120 Vdc or 240 Vac
Max. Switched Current: 10 amps
Time Delay: Adjustable from 0.15 to 60 seconds
Max. Temp. Rating: 70°C (158°F)
Sensor Voltage Supply:13.5 Vdc, @ 100 mA
Mounting Connection: 3/4′ NPT
Conduit Connection: 1/2′ NPT
Enclosure Material: (PP), flame retardant
Enclosure Rating: NEMA-4X (IP65)
Dimensions: 7.1 dia. x 11.9 cm high (2.8 x 4.7′) x 3/4′ NPT
