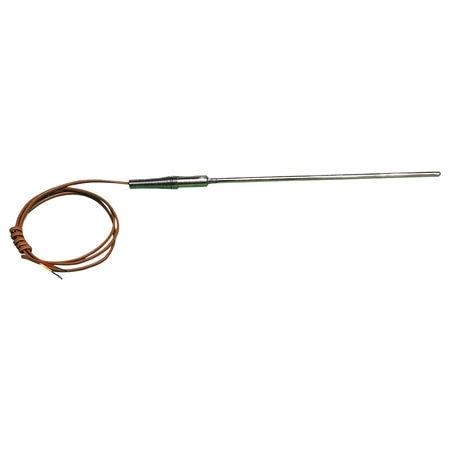

Small Diameter Immersion Thermocouple Probes With PFA Cable

Original price was: $62.91.Current price is: $44.04.

Diameters as small as 0.25mm (0.010′) !
Probes Available in E, J, K, N, and T Calibrations
304 SS and Inconel^® 600 sheaths
Additional Sheaths Available: 310 SS, 316 SS, 321 SS and Super OMEGACLAD™ XL

Thermocouple Type

Termination Connection Type

Cable Length

Process Temperature Max

Probe Length

Probe Diameter

Junction Type

Sheath Material

Sensor Application

Process Temperature Range

Clear

SKU: TJ36-CPSS-020U-6 Categories: Probes with Lead Wires, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA’s fine diameter transition joint thermocouple probes provide durability and fast, accurate temperature measurements. Diameters as small 0.25mm (0.010″) allow “pin-point” accuracy of measured values while protecting the measurement junction inside the metal sheathing and mineral insualtion of the OMEGACLAD™ cable . The metal transition barrel provides a solid mounting surface and the PFA insulated lead wire is a cost-effective solution for environmental temperatures to 260°C (500°F). For extended life, low drift operation at higher temperatures, choose Super OMEGACLAD™ XL sheathing, available in Type K and N calibrations.

Calibration ANSI Code	Sheath Materials	Sheath Dia. mm (in.)	T/C Junction Upper Temp. °C (°F)	Model Number (See notes, below)
K CHROMEGA™- ALOMEGA™	304SS	0.25 (0.010) 0.50 (0.020) 0.80 (0.032) 1.00 (0.040)	500 (932) 700 (1290) 700 (1290) 700 (1290)	TJ36-CASS-010()-() TJ36-CASS-020()-(*) TJ36-CASS-032()-(*) TJ36-CASS-040()-(**)
	Inconel^® 600	0.25 (0.010) 0.50 (0.020) 0.80 (0.032) 1.00 (0.040)	500 (932) 700 (1290) 700 (1290) 700 (1290)	TJ36-CAIN-010()-() TJ36-CAIN-020()-(*) TJ36-CAIN-032()-(*) TJ36-CAIN-040()-(**)
	Super OMEGACLAD™ XL	0.25 (0.010) 0.50 (0.020) 0.80 (0.032) 1.00 (0.040)	600 (1112) 800 (1472) 800 (1472) 800 (1472)	TJ36-CAXL-010()-() TJ36-CAXL-020()-(*) TJ36-CAXL-032()-(*) TJ36-CAXL-040()-(**)
J Iron- Constantan	304SS	0.25 (0.010) 0.50 (0.020) 0.80 (0.032) 1.00 (0.040)	260 (500) 260 (500) 260 (500) 260 (500)	TJ36-ICSS-010()-() TJ36-ICSS-020()-(*) TJ36-ICSS-032()-(*) TJ36-ICSS-040()-(**)
T Copper- Constantan	304SS	0.50 (0.020) 0.80 (0.032) 1.00 (0.040)	260 (500) 260 (500) 260 (500)	TJ36-CPSS-020()-() TJ36-CPSS-032()-(*) TJ36-CPSS-040()-(**)

Notes: *Specify Junction: (G)rounded, (E)xposed or or (U)ngrounded.
**Specify length in inches: 6 for 150 mm (6 in.), 12 for 300 mm (12 in.),
Super OMEGACLAD™ XL probes (highlighted in yellow) are also available in N calibration; substitute “NN” for CA in Model Number.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	T, K, J, N
Termination Connection Type	Stripped Leads, Miniature Connector
Color Code Standard	ANSI (Standard)
Wire Gauge	24 AWG
Cable Insulation	PFA
Process Temperature Min	0
Process Temperature Unit	°C
Category	Thermocouple
Cable Length	40 in, 120 in, 12 in, 240 in, 48 in, 72 in
Process Temperature Max	260, 700, 800
Probe Length	6 in, 108 in, 16 in, 9 in, 12 in, 4 in, 3 in, 60 in, 120 in, 2 in, 24 in, 18 in, 7 in, 32 in, 48 in, 8 in, 72 in, 40 in
Probe Diameter	0.020 in, 0.040 in, 0.032 in, 0.010 in
Junction Type	Ungrounded, Grounded, Exposed
Sheath Material	304 Stainless Steel, Inconel® 600, 316 Stainless Steel, Super OMEGACLADâ„¢ XL
Sensor Application	Immersion Probe, Air Probe
Process Temperature Range	0 to 260°C (32 to 500°F), 0 to 700°C (32 to 1290°F), 0 to 800°C (32 to 1472°F)
Additional Feature	none
