Small Diameter Inductive Proximity Sensors, Range From 0.8 To 3mm

Original price was: $167.50.Current price is: $99.99.

Small 5 and 8 mm Diameters for Use in Applications with Limited Space for Mounting Sensors
Stainless Steel or Ni-Brass Housings
All Models Include an LED Indicator to Show Output Status
Short Circuit and Reverse Polarity Protection

Sensor Type

Sensing Range

Connection Type

Diameter

Clear

SKU: E57EAL5T111SP Categories: Control & Monitoring, Motion and Position, Proximity Sensors Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

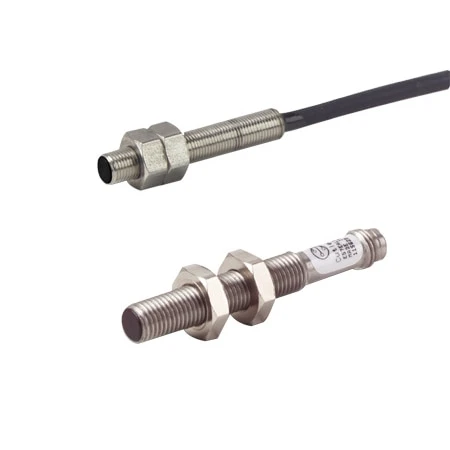

These unique Cutler-Hammer® Inductive Proximity Sensors are designed to be used in extremely small spaces. A wide variety of models are available with housing diameters of 8 mm (0.31′) and a very small 5 mm (0.20′), allowing you to choose the one that best fits your application. The sensors are 3-wire devices that operate from 10 to 30 Vdc. Both shielded and unshielded versions are available.

SPECIFICATIONS
Operating Voltage: 10 to 30 Vdc
Maximum Load Current: 200 mA
Switching Frequency: 2 kHz
Leakage Current: 0.01 mA maximum
Voltage Drop: 1.5V maximum
Burden Current: 10 mA maximum
Protection Transient: Power on false pulse suppression, auto-reset short circuit
Switching Hysteresis: <15% rated sensing distance
Repeat Accuracy: <1% sensing distance
Time Delay Before Availability: <50 mS
Output Indicator LED: Lights when output is ON
Operating Temperature: -25 to 70°C (-13 to 158°F)
Enclosure Ratings: NEMA 4, 4X, 6, 6P, 12 and 13 (IP67)
Housing Material: Stainless steel or Ni plated brass
Cable: PVC high flex, oil/water resistant, 22 AWG

Wiring Diagrams (Pin Numbers Are for Reference, Rely on Pin Location When Wiring)

OPERATING VOLTAGE 3-WIRE SENSORS	OUTPUT	CABLE MODELS	MICRO CONNECTOR MODELS (FACE VIEW MALE SHOWN)
10 to 30 Vdc	NO (NPN)
10 to 30 Vdc	NO (PNP)

TYPE	MODEL NO.	OPERATING VOLTAGE	SENSING RANGE mm (in)	SHIELDING	CONNECTION TYPE m (ft)
5 mm (0.20′) Dia. End Sensing NO Output SS Case	E57EAL5T110SP	10 to 30 Vdc	0.8 (0.03)	Shielded NPN	2 (6) cable
	E57EAL5T111SP			Shielded PNP
8 mm (0.31′) Dia. End Sensing NO Output Ni-Brass Case	E57-08GS01-C	10 to 30 Vdc	1 (0.04)	Shielded NPN	2 (6) cable
	E57-08GS01-CDB				4-pin micro DC connector
	E57-08GS01-G			Shielded PNP	2 (6) cable
	E57-08GS01-GDB				4-pin micro DC connector
	E57-08GU02-C		2 (0.08)	Unshielded NPN	2 (6) cable
	E57-08GU02-CDB				4-pin micro DC connector
	E57-08GU02-G			Unshielded PNP	2 (6) cable
	E57-08GU02-GDB				4-pin micro DC connector
	E57-08GE03-C		3 (0.1) Extended Range	Shielded NPN	2 (6) cable
	E57-08GE03-CDB				4-pin micro DC connector
	E57-08GE03-G			Shielded PNP	2 (6) cable
	E57-08GE03-GDB				4-pin micro DC connector

Sensor Type	3-Wire, N.O. Output, PNP, 3-Wire, N.O. Output, NPN
Sensing Range	0.8 mm, 3 mm, 1 mm, 2 mm
Connection Type	2 m Cable, 4-Pin Micro DC Connector
Diameter	5 mm, 8 mm
Supply Voltage	10 to 30 Vdc
Shielding	Shielded
