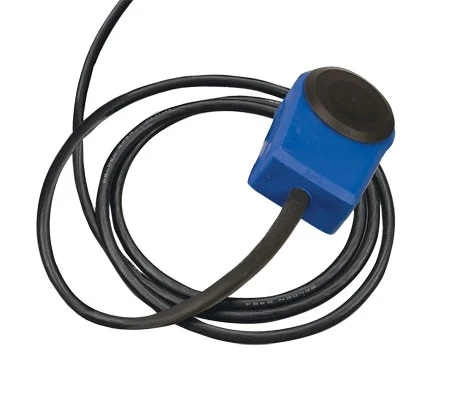

Speed Sensor For Direct Motor Shaft Mount

Original price was: $245.52.Current price is: $98.99.

Mounts Directly on Motor Shaft
5000 Rpm or 50,000 Pulses/Minute
Square Wave Output Signal Equals Supply Voltage: 4.5 to 24 Vdc
NPN Open Collector Output Signal with Built-in Pull-up Resistor

Output

Features

Clear

SKU: OMDC-PU-40E Categories: Control & Monitoring, Motion and Position, Speed Sensors Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The OMDC-PU-E pick-up sensor is an economical and reliable way to monitor motor speed. Its unique design provides ease of installation in otherwise difficult to reach areas. The OMDC-PU-E pick-up sensor operates at a 5 to 24 volt level producing a sharp square wave output, which may be fed into tachometer, closed-loop control, counter, or any other digital device. The OMDC-PU-E pick-up series also includes a quadrature model to monitor both motor speed and direction by providing two square wave output signals 81° out-of-phase.
View Specs for easy mounting instructions.

New outdoor (NEMA 3R) models available: OMDC-PU-R series

Output	20 Pulses per Revolution, 10 Pulses per Revolution, 1 Pulse per Revolution, 2 Pulses per Revolution, Not Applicable
Features	Indoor Applications, Outdoor Applications, 1 HP DC Motor, 180 volts, Indoor Applications, 1 HP DC Motor, 90 volts, Indoor Applications, 1/2 HP DC Motor, 180 volts, Indoor Applications, 1/3 HP DC Motor, 90 volts, Indoor Applications, 1.5 HP DC Motor, 180 volts, Indoor Applications, 3/4 HP DC Motor, 90 volts, Indoor Applications
Range	5000 rpm
