Spring Loaded Thermocouple Probes Protection Heads

Original price was: $186.74.Current price is: $97.99.

Non-sealed Design For Use With Thermowells
Made with Special Limits of Error Thermocouple Material
Approx. 1/2′ of Travel Length
1/2′ NPT Mounting Threads Standard

Thermocouple Type

Process Temperature Range

Process Connection Size

Sheath Material

Junction Type

Probe Diameter

Probe Length

Termination Connection Type

Additional Feature

Clear

SKU: NB2-CASS-14U-6-TBSL-DUAL Categories: Probes with Industrial Heads, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

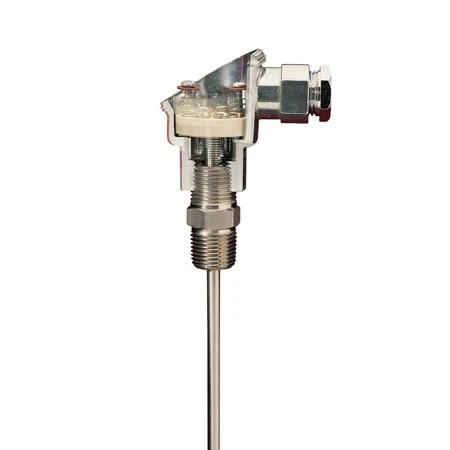

These spring loaded probe assemblies offer a choice of two styles of protection heads to meet environmental and size requirements. The probes can move up to 1/2 ” in the direction of the head’s axis. The thermocouples are available in J, K, T or E calibrations, with either 304SS or Inconel^® sheathing (high temperature Super OMEGACLAD™XL or 321SS provided on request).
Standard lengths are 12″ including 1/2″ for the pipe thread in the relaxed state. Other probe lengths are available. Both the thread on the spring loaded probe and the extension wire opening are 1/2″ NPT. The NB2 head includes a compression fitting nut and rubber ferrule for 1/8″ to 1/4″ O.D. wires or tubing.

The moving internal terminal block with attached probe is standard on all models. Consult the Custom Engineering Dept. for price and delivery on a wide variety of non-metallic and other specialized heads.

View the Thermocouple Accuracy and Color Code charts

Thermocouple Type	K, J, T, E, N
Process Temperature Range	0 to 1150°C (32 to 2100°F), 0 to 720°C (32 to 1300°F), 0 to 920°C (32 to 1690°F), 0 to 1070°C (32 to 1960°F), 0 to 1204°C (32 to 2200°F), 0 to 370°C (32 to 700°F), 0 to 315°C (32 to 600°F), 0 to 260°C (32 to 500°F), 0 to 820°C (32 to 1510°F), 0 to 730°C (32 to 1350°F), 0 to 650°C (32 to 1200°F), 0 to 440°C (32 to 825°F), 0 to 520°C (32 to 970°F), 0 to 620°C (32 to 1150°F), 0 to 510°C (32 to 950°F)
Process Connection Size	1/2" NPT, 1/2 NPT
Sheath Material	304 Stainless Steel, Inconel® 600, Super OMEGACLAD™ XL, 316 Stainless Steel
Junction Type	Ungrounded, Grounded, Exposed
Probe Diameter	0.25 in, 0.062 in, 1/4 in, 1/8 in, 0.125 in, 0.187 in, 3/16 in, 1/16 in
Probe Length	6 in, 24 in, 12 in, 4 in, 18 in, 9 in, 11.5 in, 8 in
Termination Connection Type	Burnished Die Cast Aluminum Connection Head, Low-Profile Aluminum Connection Head, 316 Stainless Steel Conneciton Head, Cast Iron Connection Head, Terminal Block, Stripped Leads, Flip-top Aluminum Dome-Shaped Connection Head, Flip-top Aluminum Connection Head, Black Cast Iron Connection Head, Deep-base Aluminum Connection Head, Domed-top Aluminum Connection Head, Nylon Connection Head
Additional Feature	Spring-loaded Dual Elements, Spring-loaded probe, Industiral probe, Spring Loaded Replacement Probe, Spring-loaded probe Dual Elements
Category	Thermocouple
Sensor Application	For Use in Thermowells
