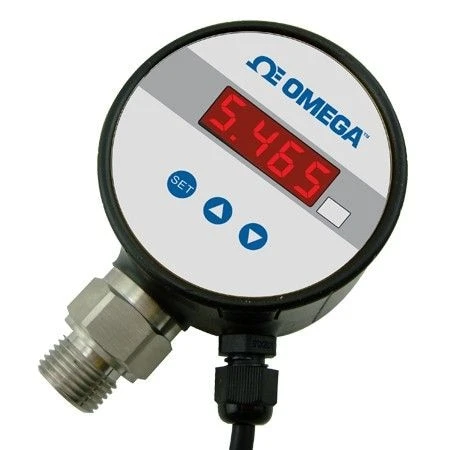

Stainless Steel DC Loop Powered Digital Pressure Gauge

Original price was: $276.33.Current price is: $99.99.

Intelligent Two-Wire System 4 to 20 mA Working Mode, 4-Digits 0.56′ Digital LED Display
Full Digital Push-Button Calibration for Zero and Full Scale, No Potentiometers, Low-Temperature Drift
Reinforced Anti-Jamming Design is Suitable for the Electromagnetic Environment and Harsh Industrial Environments
IP65

Pressure Type

Pressure Range Units

Pressure Range Min

Pressure Range Max

Pressure Range

Accuracy Value

Accuracy Class

Clear

SKU: DPG110-500G Categories: Digital Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

DPG110 is an electronic digital pressure gauge used to monitor hydraulic fluids. It monitors the pressure via the resistance measured on an isolation membrane. The output signal is amplified by a high-precision, low-temperature drift amplifier. The signal is then fed into a high accuracy A/D converter for the microprocessor to process and then show on the LED display.

This flexible, simple to operate digital pressure gauge is safe, reliable and easy to maintain. The DPG110 is widely used in hydro-power, water, petroleum, chemical, mechanical, hydraulic, and other industries.

Specifications
Display Units: Select one of the following: psi, bar, kPa, MPa, kg/cm²
Measuring Range: 0 to 20 Mpa, (0 to 2900 psi)
Display Type/Size: 4 Digit 0.56″ LED screen
Accuracy: 0.25% FS for gauge pressure >5psi
±0.5% FS for all others including absolute, compound gauge, and Vacuum ranges
Power: 12 to 32 Vdc
Stability: ±0.2% FS per year
Output Signal: 4 to 20 mA
Case Protection: IP65
Operating Temperature: -30 to 80ºC (-22 to 176ºF)
Operating Humidity: <90%
Medium Temperature: -40 to 150ºC (-40 to 302ºF)
Note: Use a high-temperature cooling element when the medium temperature is greater than 80ºC (176ºF)
Overpressure Limits: 3x rated pressure below 60 psi; 2x rated pressure from 100 to 1000psi; 1.5 x rated pressure over 1000 psi
Process Connection: ¼” NPT, others consult Omega
Wetted Parts: 316 SS threads, NBR O-ring
Storage Temperature: -20 to 70ºC (-4 to 160ºF), less than 80% relative humidity

Pressure Type	Gauge, Compound Gauge, Absolute, Vacuum
Pressure Range Units	psi, inHg
Pressure Range Min	0, -5, -15
Pressure Range Max	500, 5, 15, 30, 60, 100, 1000, 200, 2000, 300, 3000, 30 inHg, 5000
Pressure Range	0 to 500 psi, -5 to 5 psi, 0 to 5 psi, 0 to 15 psi, -15 to 15 psi, 0 to 30 psi, 0 to 60 psi, 0 to 100 psi, 0 to 1,000 psi, 0 to 200 psi, 0 to 2,000 psi, 0 to 300 psi, 0 to 3,000 psi, 0 to 30 inHg, 0 to 5,000 psi, -15 to 100 psi
Accuracy Value	±0.25%, ±0.5%
Accuracy Class	0.1% to 0.25%, > 0.25%
Pressure Port Type	NPT Male
Pressure Port Size	1/4"
Power Source	Loop Powered
Number of Digits	4
Electrical Output	4 to 20 mA
Output Signal	Current
