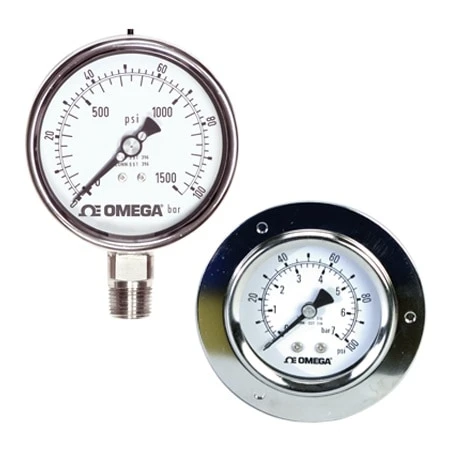

Stainless Steel, Dual Scale, Bar And Psi Pressure Gauges

Original price was: $125.40.Current price is: $87.78.

Dual Scales in PSI and BAR Standard
63 mm (2½’) and 100 mm (4′) Dial Sizes
Back or Lower Mount Fittings
All Stainless Steel Construction

Pressure Type

Pressure Range Min

Pressure Range Max

Pressure Port Size

Accuracy Value

Dial Size

Additional Features

Clear

SKU: PGM-63L-100PSI/7BAR Categories: Analog Pressure Gauges, Pressure Gauges, Pressure Measurement Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA’s PGM series gauges are suitable for corrosive environments in chemical, petro-chemical, refining, power, marine and food and pharmaceutical processing applications. The PGM series comes in a 63 mm (2½’) or 100 mm (4′) case, features all stainless steel construction and is environmentally protected to IP65.

The PGM series can also be liquid filled in the field. Liquid filled pressure gauges provide users with a number of advantages in certain applications. They are ideally suited for uses on equipment where excessive vibration and pulsation are encountered such as pumps, compressors and machine tools etc. The liquid fill minimizes the effect of these severe environments, protects the gauge internals and provides continuous lubrication in the mechanism, all adding up to extended service life. Liquid filling provides greater protection of the gauge internals from corrosive atmospheres. Gauges can be filled with a variety of fluids including glycerin, mineral oil and silicone oil.

SPECIFICATIONS
Accuracy: 63 mm ±1.6% of span (Grade B), 100 mm ±1% of span (Grade 1A)
Working Pressure: 75% of full scale
Over Range Protection: 130% of full scale
Ambient Temp. Range: -40 to 60°C (-40 to 140°F)
Process Temp. Range: -20 to 80°C (-4 to 176°F)
Degree of Protection: IP65
Element: 316 stainless steel
Window: 63 mm: polycarbonate, 100 mm: laminated safety glass
Dial: White Aluminum with black lettering
Pointer: Aluminum alloy, black painted
Case and Bezel Ring: 304 stainless steel
Movement: 304 stainless steel
Pressure Connection: 316 stainless steel, ¼ MNPT on 63 mm, ½ MNPT on 100 mm
Blowout Protection: 63 mm top mounted rubber disc, 100 mm back mounted rubber disc

Examples of pricing for popular models is referenced in the ‘To Order’ box.

Pressure Type	Gauge, Compound Gauge, Vacuum
Pressure Range Min	0, -1
Pressure Range Max	7, 700, 70, 800, 100, 1, 11, 14, 160, 200, 20, 2, 10, -1, 4, 250, 28, 350, 400, 40, 55, 140
Pressure Port Size	1/4", 1/2"
Accuracy Value	±1.6%, ±1%
Dial Size	63mm, 100mm
Additional Features	Bottom mounting, Dual Scale, Rear Connection, Dual scale
Pressure Range Units	bar
Pressure Port Type	NPT Male
Accuracy Class	> 0.25%
