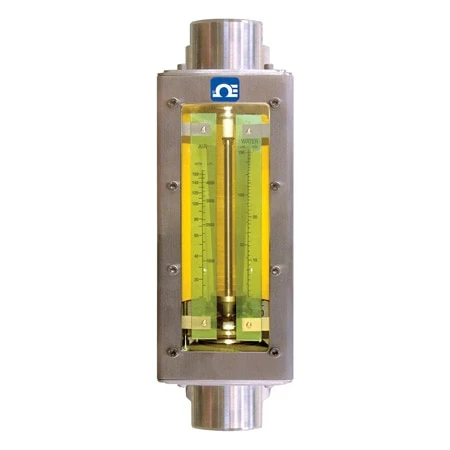

Stainless Steel Frame Industrial Variable Area Flow Meters

Original price was: $359.00.Current price is: $98.99.

Heavy Duty Stainless Steel
Thick Polycarbonate Safety Shields
Fluted or Plain Tapered Tubes
Direct Reading Metric and English System Scales

Media Type

Gas Flow Range

Liquid Flow Range

Process Connection Size

Max Operating Pressure

Clear

SKU: FLD111 Categories: Flow Instruments, Flow Meters, Variable Area Flow Meters Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The FLD100 Heavy-duty flowmeters are fully enclosed in a brushed stainless steel case. Ideal for industrial applications with flow rates up to 116 GPM and 250 SCFM. Used with industrial water and air service. Meters are graduated for direct reading of water and air. Flow meters come with FNPT end fittings for easy in-line installation.

Model No.	Max Flow Rate
Model No.	Water GPM	AIR SCFM	Water L/min	Air L/min	Tube Size
FLD101	0.25	1.2	0.95	35	3
FLD102	0.36	1.7	1.3	50	3
FLD103	0.76	3.3	3	90	3
FLD104	1	4.2	3.7	120	4
FLD105	1.5	6.5	5.6	180	4
FLD106	2.2	8.5	8.2	250	4
FLD107	3.8	16	14	475	5
FLD108	5	21.5	18	650	5
FLD109	6	25.5	20	725	6
FLD110	7.4	30	27.5	900	6
FLD111	9.6	40	35	1200	6
FLD112	11	47.5	40	1400	6
FLD113	14	62	50	1800	6
FLD114	20	90	75	2600	6
FLD115	22	90	83	2550	8
FLD116	26	—	98	—	6
FLD117	41	160	155	4531	9
FLD118	44	180	167	5098	8
FLD119	60	245	227	6938	9
FLD120	61	250	231	7080	8
FLD121	86	—	326	—	9
FLD122	116	—	439	—	9

Tube Size	FNPT
3 and 4	1/2″
5 and 6	1″
8 and 9	2″

SPECIFICATIONS
Accuracy: ±3% of full scale
Minimum Flow Rate: Approx. 10% of max flow rate
Repeatability: ±0.5% of full scale
Max Pressure: [at 93°C (200°F)] 200 psi (tube sizes 3, 4, 5 and 6); 125 psi (tube sizes 8 and 9)
Max Operating Temperature: 93°C (200°F)
Wetted Parts: Include borosilicate glass flow tubes, FKM O-rings, and 316 SS fittings, guide rods, floats and float stops

Media Type	Air, Water, Water
Gas Flow Range	4 to 40 SCFM, 0.12 to 1.2 SCFM, 0.17 to 1.7 SCFM, 0.33 to 3.3 SCFM, 0.42 to 4.2 SCFM, 0.65 to 6.5 SCFM, 0.85 to 8.5 SCFM, 1.6 to 16 SCFM, 2.15 to 21.5 SCFM, 2.55 to 25.5 SCFM, 3 to 30 SCFM, 4.75 to 47.5 SCFM, 6.2 to 62 SCFM, 9 to 90 SCFM, Not Applicable, 16 to 160 SCFM, 18 to 180 SCFM, 24.5 to 245 SCFM, 25 to 250 SCFM
Liquid Flow Range	0.96 to 9.6 GPM, 0.025 to 0.25 GPM, 0.036 to 0.36 GPM, 0.076 to 0.76 GPM, 0.1 to 1 GPM, 0.15 to 1.5 GPM, 0.22 to 2.2 GPM, 0.38 to 3.8 GPM, 0.5 to 5 GPM, 0.6 to 6 GPM, 0.74 to 7.4 GPM, 1.1 to 11 GPM, 1.4 to 14 GPM, 2 to 20 GPM, 2.2 to 22 GPM, 2.6 to 26 GPM, 4.1 to 41 GPM, 4.4 to 44 GPM, 6 to 60 GPM, 6.1 to 61 GPM, 8.6 to 86 GPM, 11.6 to 116 GPM
Process Connection Size	1", 1/2", 2"
Max Operating Pressure	200 psi, 125 psi
Category	Meter
Accuracy	±3%
Process Connection Type	NPT Female
Wetted Materials	316 SS, Glass, FKM
Max Process Temperature	93 °C (200 °F)
Scale	Direct Read
Valve Included	No
