Submersible Flat Surface PH Electrodes

Original price was: $344.00.Current price is: $98.99.

16 Month Shelf Life
CPVC or PVDF Construction
Designed For Mounting in Tanks, Flumes, etc
Easy Mounting in Tanks

SKU: PHE-6511 Categories: Air, Soil, Liquid, and Gas, Control & Monitoring, Water Quality Sensors Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

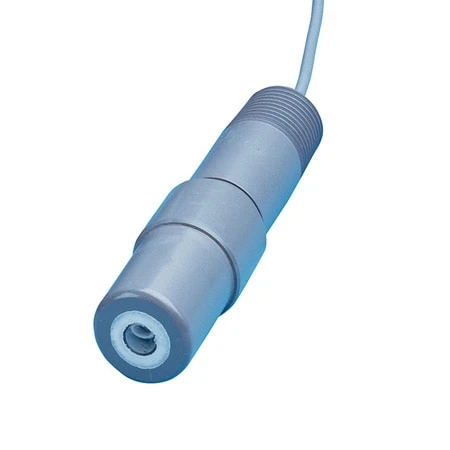

The OMEGA™ PHE/ORE-6510 Series submersible electrodes are designed for use in drums, open tanks and streams, etc. The flat sensing surface is surrounded by a porous polyethylene reference junction which minimizes fouling. Electrode installation and removal done by a simple 1/4 turn quick disconnect. The cable assembly’s cap has 1/2″ MNPT thread, which can be connected to a coupling and support pipe. The pipe allows easy mechanical mounting and protects the cable from the liquid measured. The resulting assembly is lightweight for convenient handling when maintenance is needed. ATC is available as part of the mounting assembly.

The flat surface design is well suited for applications with relatively high suspended solids or where flocculation operations require low velocities.

Where only low velocities are present and coating is a problem, the electrode can be mounted at a 45° angle facing the flow so as to obtain increased scrubbing action across the measuring surface.

Submersible Electrode Options

Ordering Suffix	Description	Available In Line Models
-HF	HF resistant to 2% at ambient temperature	PHE-6510, PHE-6511, PHE-6510-GL
-GL	Ground Loop	PHE-6510, ORE-6510
-LC	Low Conductivity	All pH electrodes
-ACRYL	ACRYL Gel	All models but PHE-5460

Note: At the time of initial purchase, please order both electrode and mounting assembly. Mounting assembly includes assembly in which the electrode is mounted and 10′ cable. If ordered with automatic temperature compensation (ATC), the temperature compensator is built into the mounting assembly. When the electrode has expired, simply re-order the electrode (the mounting assembly is re-usable).

Please download PDF file for full specifications and a complete list of available models.
