Specifications
Maximum Temperature 87°C (190°F) CPVC body 100°C (212°F) PVDF body
Available Options:
“-HF” HF resistant to 2% at ambient temperature
“-LC” Low conductivity
“-GL” Ground loop, for additional cost
Submersible Flat Surface PH/ORP Electrodes
$228.52 Original price was: $228.52.$99.99Current price is: $99.99.
- 16 Month Shelf Life
- CPVC or PVDF Construction
- Designed For Mounting in Tanks, Flumes, and Streams
- Easy Mounting in Tanks
SKU: PHE-6510B Categories: Air, Soil, Liquid, and Gas, Control & Monitoring, Water Quality Sensors Tag: Omega Engineering
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

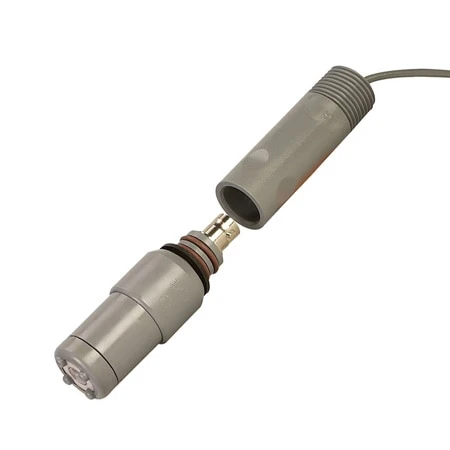

Submersion Electrodes The OMEGA™ PHE/ORE-6510B submersible electrodes are designed for use in drums, open tanks and streams. The flat sensing surface is surrounded by a porous polyethylene reference junction which minimizes fouling. Electrode installation and removal done by a simple ¼ turn quick disconnect. The cable assembly’s cap has ½ MNPT thread, which can be connected to a coupling and support pipe. The pipe allows easy mechanical mounting and protects the cable from the liquid measured. The resulting assembly is lightweight for convenient handling when maintenance is needed. ATC is available as part of the mounting assembly. The flat surface design is well suited for applications with relatively high suspended solids or where flocculation operations require low velocities. Where only low velocities are present and coating is a problem, the electrode can be mounted at a 45° angle facing the flow so as to obtain increased scrubbing action across the measuring surface.
| Measurement Type | pH, ORP |
|---|---|
| Range | 0 to 14 pH, ±2000 mV |
| Wetted Materials | CPVC, PVDF |
| Max Temperature | 87 °C (190 °F), 100 °C (212 °F) |
| Features | Mounting Assemblies Required for Installation, HF/Fluoride Resistant, Mounting Assemblies Required for Installation |
| Process Connection Type | BNC |
