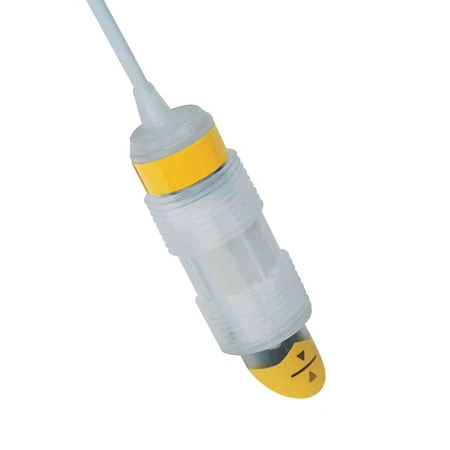

Submersible Optical Switch For Level Or Leak Detection

Original price was: $390.66.Current price is: $96.99.

Pulsed, Infrared Light Excitation (Leak Detection Solution)
SPST Relay Standard
Impervious to Most Ambient Light Conditions
Mounted any Orientation, Wet or Dry

Wetted Materials

Features

Clear

SKU: LVF-212A-R Categories: Control & Monitoring, Level Switches, Process Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The LVF-200A-R Series optic sensor creates a pulsed beam of infrared light which is reflected on the oblique flat sensor tip. If the tip is dry, the light beam is recognized and if it is wet, the beam reflects back into the liquid. The optic sensor is factory calibrated for use with clear or translucent liquids. The shape and optic characteristics of the oblique flat optical surface provide a high level of optical efficiency, including resistance to ambient light and process condensation. Although the sensor offers very broad liquid compatibility, it is not recommended for use with coating or highly specular liquids. Ideal for leak detection.

Specifications
Accuracy: ±1 mm (0.04″) in water
Repeatability: ±0.5 mm (0.02″) in water
Operating Principle: Pulsed, infrared light beam
Voltage Input: 12 to 36 Vdc @25 mA
Relay: 60 VA, 1 A maximum
Switch Mode: Selectable, SPST, NO or NC states
Wetted Materials: Polypropylene (PP) or Perfluoroalkoxy (PFA)
Loop Resistance: 600 ? @ 24 Vdc
Maximum Pressure Rating PP: 150 psi @ 25°C (76°F) derated @ 1.667 psi per °C above 25°C (76°F)
Maximum Temperature Rating: -40 to 90°C (-40 to 194°F)
Enclosure Rating: NEMA 6 (IP68) submersible sensor and cable
Cable Length: 3 m (10′) 4 conductor shielded
Max. Cable Length: 305 m (1000′)
Dimensions: 7.6 or 11.4 L x 2.7 cm Dia (3.0 or 4.5 x 1.05″) ¾ NPT or ¾ G

Wetted Materials	Polypropylene, Perfluoroalkoxy
Features	Cable Length 4.5", Switch Type Selectable, NO or NC, Cable Length 3", Switch Type Selectable, NO or NC
Media Type	Liquid
Max Operating Pressure	150 psi
Max Process Temperature	90 °C (194 °F)
Process Connection Type	NPT Male
Process Connection Size	3/4"
Switch Rating and Type	1 A SPST
