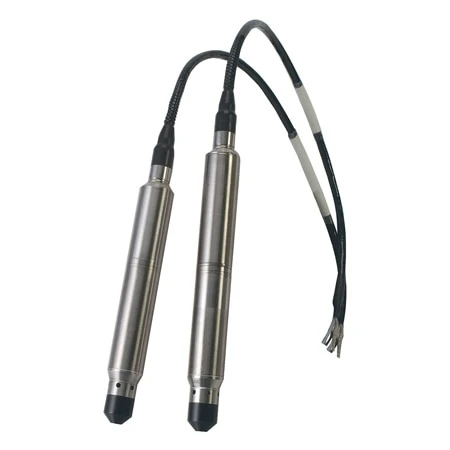

Submersible Pressure Transducers With 4 Output Options

Original price was: $377.00.Current price is: $95.99.

0.20% Standard Accuracy or Optional 0.08% High Accuracy Models for Precise Depth or Level Measurement
Precision Micromachined Silicon Sensor for Long Term Stability
5-Point NIST Traceable Calibration Included
Lightning/Surge Protection Available on Amplified Models

Pressure Range

Pressure Type

Accuracy Class

Accuracy Value(compensated range)

Output Signal

Electrical output

Connection/Termination

Clear

SKU: PX709CGW-005GI-HH Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

Description

The PX709GW Series submersible level/depth transducers and transmitters are designed to make precision level or depth measurements in fresh water or liquids compatible with 316 SS reliably for years in harsh industrial environments. They are also ideal for environmental monitoring of job sites and field locations. The PX709GW series has the proven Omega micromachined silicon technology as its core sensor. The Piezoresistive technology uses precision solid state strain gages molecularly embedded into a highly stable silicon wafer. The silicon is mounted in a sealed chamber and protected from the environmental fluids by a pressure sensitive stainless steel diaphragm. A very small volume of silicone oil transfers the pressure from the diaphragm to the silicon sensor. The cable is molded onto the case using a unique high pressure high temperature system to assure the best possible quality seal for long life and durability. This technology produces a very rugged high stability sensor with exceptional accuracy minimal thermal effects and long term reliability.

Weatherproof enclosures are also available to easily terminate your transmitter at your control location. The enclosures have fittings to hold the desiccant and locations to make all your connections. They are also available with Lightning/Surge protection to protect your wiring and instruments. Protected models are available for 4-20 mA outputs or the amplified 0 to 5 or 0-10 Vdc outputs.

3 Pressure Types: Gage pressure (vented through the cable) Sealed gage pressure Absolute pressure

4 Outputs: mV/V 0-5Vdc 0-10Vdc or 4-20 mA

Pressure Ranges: from 10 inH2O to 1000 psi

The Standard cable length is 10 ft and optional lengths are available up to 300 ft.

Pressure Range	0 to 5 psi, 0 to 15 psi, 0 to 100 psi
Pressure Type	Gauge, Absolute
Accuracy Class	< 0.1%, 0.1% to 0.25%
Accuracy Value(compensated range)	±0.08%, ±0.2%
Output Signal	Current, Ratiometric mV/V
Electrical output	4 to 20 mA, 10 mV/V
Connection/Termination	Submersible Cable with Conduit, Submersible Cable
Pressure Port Type	Submersible
Operating Temperature Range	-18 to 79 °C (0 to 175 °F)
Additional Features	Not Applicable
