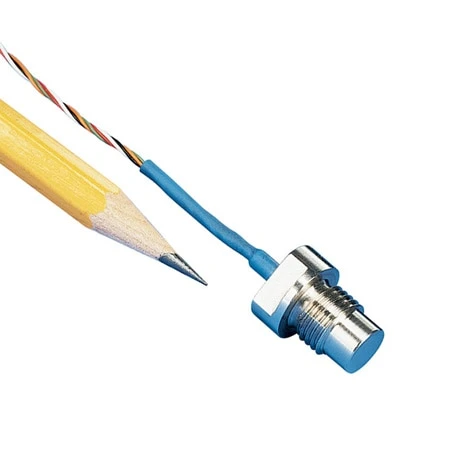

Subminiature, Flush Diaphragm Pressure Transducers

Original price was: $352.00.Current price is: $95.99.

All Stainless Steel Diaphragm and Threaded Side Wall Construction
Rugged Stainless Steel Case Protects Components in Industrial Environments
Uses a Standard 5 Vdc Regulated Power Supply for Maximum Versatility
Custom Subminiature Design Techniques Provide Small Size and Preserves Accuracy

Pressure Range

Pressure Port Size

Pressure Port Type

Additional Features

Clear

SKU: PXM600MU-35BARGV Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SPECIFICATIONS
Excitation: 5 Vdc @15 mA
Output: 10 mV typical @ 5 Vdc
Sensitivity: 2 mV/V
Nominal Input Impedance: 360 Ohms min
Output Resistance: 350 Ohms min Insulation
Resistance: 5 MOhms @ 75 Vdc
Accuracy: ±1% FS( Linearity and Hysteresis combined)
Repeatability: ±0.1% FS
Zero Balance: ±3% FS
Operable Temperature Range: -65 to 250°F (-54 to 121°C)
Compensated Temperature Range: 60 to 160°F (16 to 71°C)
Thermal Zero Effect: less than ±0.01% full scale/°F
Thermal Sensitivity Effect: ±0.02% Reading/ °F
Proof Pressure:150% Range
Burst Pressure: 400% Range
Body and Diaphragm Material: 17-4 PH Stainless Steel
O-Ring: 2-011 Polyvinyl: 2-011-P $15/10 pack
FKM: 2-011-V $10/10 pack
Electrical Connection: 4 Cond Cable
Weight: 0.5 oz (14 g)

Compatible meters: DP41-S**, DP25-S**

Pressure Range	0 to 35 bar, 0 to 10000 psi, 0 to 1000 psi, 0 to 200 psi, 0 to 2,000 psi, 0 to 3,000 psi, 0 to 500 psi, 0 to 5000 psi, 0 to 140 bar, 0 to 14 bar, 0 to 200 bar, 0 to 350 bar, 0 to 700 bar, 0 to 70 bar
Pressure Port Size	1/8", 3/8"
Pressure Port Type	BSPP Male, Flush
Additional Features	Not Applicable, 3m Cable
Pressure Type	Gauge
Accuracy Class	> 0.25%
Accuracy Value(compensated range)	±1%
Output Signal	Ratiometric mV/V
Electrical output	2 mV/V
Connection/Termination	Cable
Operating Temperature Range	-54 to 121 °C (-65 to 250 °F)
