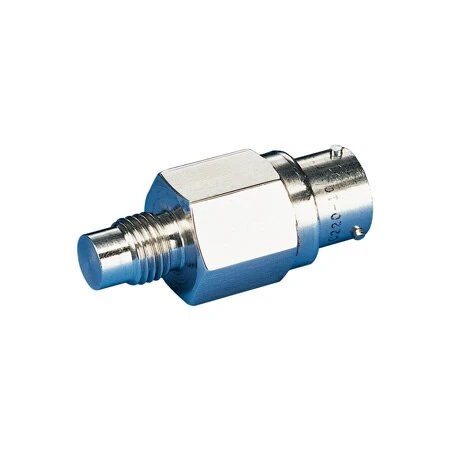

Subminiature Millivolt Output Type Pressure Transducer For Accurate Measurements In Restricted Locations

Original price was: $317.00.Current price is: $95.99.

Stainless Steel Diaphragm for CompatIbility with Most Media
Rugged Stainless Steel Case Protects Components in Industrial Environments
Custom Subminiature Design Techniques Provide Small Size and Preserve Accuracy
7 /16 ‘ UNF Process Threading for Fast, Easy, and Secure Connections

SKU: PX610-5KGV Categories: Pressure Measurement, Pressure Transducers Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

SPECIFICATIONS
Excitation: 5 Vdc @15 mA Output: 10 mV (200 psi and above)
Sensitivity: 2 mV/V Nominal
Input Impedance: 360 Ohm min
Output Resistance: 350 ohm min
Insulation Resistance: >5 MOhm @ 75 Vdc
Accuracy: 1.0% (Linearity and Hysteresis combined) ±1% full scale B.F.S.L
. Repeatability: ±0.1% FS
Zero Balance: ±3.0%
Operating Temperature Range: -65 to 250°F (-54 to 121°C)
Compensated Temperature Range: 60 to 160°F (16 to 71°C)
Thermal Zero Effect and Thermal Span Effect: ± 0.02% full scale/ °F max. combined
Proof Pressure: 150% Range
Burst Pressure: 400% Range; 20,000 psi max
Body Material: 17-4 PH Stainless Steel
Diaphragm Material: 17-4 PH Stainless Steel
O-Ring Size: 2-012
Mating Connector: PT06F-10-6S (not included)
Weight: 1.5 oz (14 g)
All Units Hermetically Sealed

Pressure Range	0 to 5000 psi
Pressure Type	Gauge
Accuracy Class	> 0.25%
Accuracy Value(compensated range)	±1%
Output Signal	Ratiometric mV/V
Electrical output	2 mV/V
Pressure Port Size	7/16"
Pressure Port Type	UNF Male
Connection/Termination	MIL-26482-I 10-6P
Operating Temperature Range	-54 to 121 °C (-65 to 250 °F)
