Temperature And Process On/Off Or PID Digital Controller Panel
Original price was: $360.00.$96.99Current price is: $96.99.
- Easy-to-Use Digital Controller with On/Off, PID and Ramp/Soak
- Optional Ethernet Control with Built-In Web Server
- 120V Operation
- 12 A (1440 W) Nominal, 15 A Max Capacity
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.
*For our newest line of controllers with Modbus connectivity, expanded ramp and soak programs, universal inputs, and simple PC programming, visit our CNPT Series.*

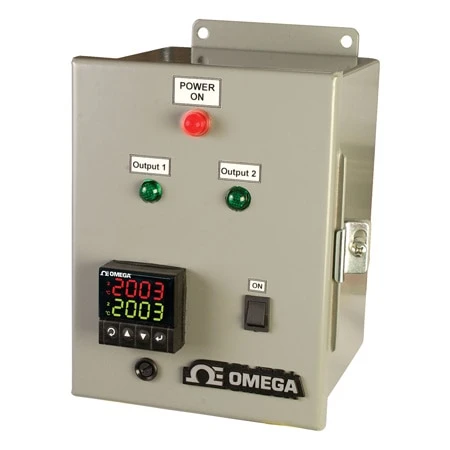

The CNI-CB120SB Series is a self-contained temperature/process control panel that provides a complete control system design, eliminating the need to select, collect and assemble separate components. The preconfigured panels are ready to install, requiring only supply power, load and sensor hook-up. They are equipped with an OMEGAâ„¢ iSeries microprocessor-based controller with on/off, PID and ramp/soak capabilities along with a tri-color display. These control panels are supplied with a thermocouple input jack and M12 female connector for RTD or process inputs. Their compact packaging makes them portable or easy to mount, even in limited spaces.
For additional information on the CNI microprocessor-based controller, see “related links” above.
Specifications
Weight: 4.53 kg (10 lb)
Dimensions: 203 H x 152 W x 152 mm D (8 x 6 x 6″)
Operating Temperature: 0 to 55°C (32 to 151°F)
Other thermocouple types are available. Please see the Part Number Builder directly below the ordering table.
Not available for export to Europe.
| Input Type | K Thermocouple, RTD, and Process, E Thermocouple, RTD, and Process, J Thermocouple, RTD, and Process, T Thermocouple, RTD, and Process, S Thermocouple, RTD, and Process |
|---|---|
| Communications | No Ethernet, Ethernet |
| Additional Feature | 12A (1440 W) Capacity, 20A (2400 W) Capacity, 20A (2400 W) Capacity 240 VAC |
| Output Type | Two 15A Controlled Output Relays, Not Applicable |
| Measurement Type | Temperature, Process |
| Control Outputs | 2 |
| Number of Inputs | 1 |
| Supply Voltage Type | AC |
