Terminal Block RTD (PT100) Probe
Original price was: $152.90.$99.99Current price is: $99.99.
- Large pan head screws for easy termination
- Low temperature range: -50 to 250°C (-58 to 482°F)
- High temperature range: -50 to 450°C (-58 to 842°F)
- Extreme temperature range: -200 to 600°C (-328 to 1112°F)
- 100% Quality Satisfaction
- Uncompromising quality, every time.
- Quality You Can Trust
- Your questions, our prompt answers.

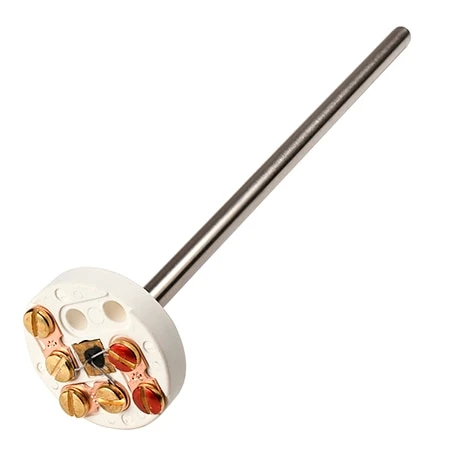

Omega’s RTD terminal block probe features a large terminal block connector, fitted with large pan head screws for easy termination. These are capable of direct immersion up to the block. The PR-15-series can be mounted into fixtures, pipes, ducts and other process areas by using our OMEGALOKâ„¢ compression fittings, sold separately.
| Process Temperature Min | -200, -50 |
|---|---|
| Process Temperature Max | 600, 450, 250 |
| Process Temperature Range | -200 to 600°C (-328 to 1112°F), -50 to 450°C (-58 to 842°F), -50 to 250°C (-58 to 482°F) |
| Number of Wires | 3, 2 |
| Probe Diameter | 0.250 in, 0.125 in |
| Probe Length | 6 in, 9 in, 12 in, 18 in, 3 in, 4 in |
| Category | RTD |
| Process Temperature Unit | °C |
| Sensor Application | Immersion Probe |
| Process Connection Size | None |
| Accuracy | Class A per IEC60751 |
| Nominal Output | 100 Ω |
| Sheath Material | 316 Stainless Steel |
| Termination Connection Type | Screw-Type Terminal Block |
| Additional Feature | None |
