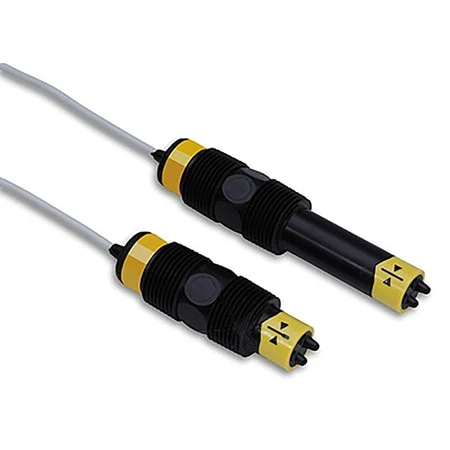

Thermal Dispersion Flow Switches For Use With Gases

Original price was: $304.01.Current price is: $96.99.

Measure Mass Flow of Gases
High Reliability, No Moving Parts
Effectively Monitor Critical Gas Flows
May Be Used in Small Piping or Large Ducts

Process Connection Size

Wetted Materials

Clear

SKU: FST-321-SPST Categories: Control & Monitoring, Flow Switches, Process Switches Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

OMEGA’s FST-320 Series thermal dispersion flow switches, especially designed for use with gases, sense changes in the heat transfer characteristics of the gases. Flow velocities from 1 to 90 fps are effectively monitored. The flow switch incorporates a standard SPST Relay switch output for control flexibility. The OMEGA^® LVCN-131 and LVCN-141 controllers can easily be interfaced to perform a variety of control functions. The FST-320 family of sensors can be easily installed in line sizes ranging from 3/4 to 12′.

SPECIFICATIONS
Range: 1 to 90 fps
Accuracy: ±5% of setpoint at constant temperature and flowrate
Response time: 10 seconds after initial 30 sec warm up
Setpoint Drift with Fluid Temperature: 0.5% per °C
Voltage Input: 12-36 Vdc @ 60 mA
Contact Output: 1 A SPST Relay, selectable NO or NC states
Fluid Temperature: 0 to 60°C (32 to 140°F)
Max Fluid Pressure: 150 psi @ 25°C (77°F) derated @ 1.667 psi per °C above 25°C (77°F)
Wetted Materials: PP with PVDF
Cable Length: 3 m (10 ft)
Max Cable Length: 305 m (1000 ft)
Dimensions:76.2 or 114.3 x 26.7 mm dia.(3.0 or 4.5 x 1.05′)

Process Connection Size	3/4" to 1 1/2", 2" to 12"
Wetted Materials	PP, PVDF, PVDF
Media Type	Gas
Velocity Range	1 to 90 FPS
Accuracy	±5%
Max Operating Pressure	150 psi
Max Process Temperature	60 °C (140 °F)
Process Connection Type	NPT male
Switch Rating and Type	1 A SPST Relay
Supply Power	12 to 36 Vdc
Wire Length	10'
Features	Switch Type Selectable, NO or NC
