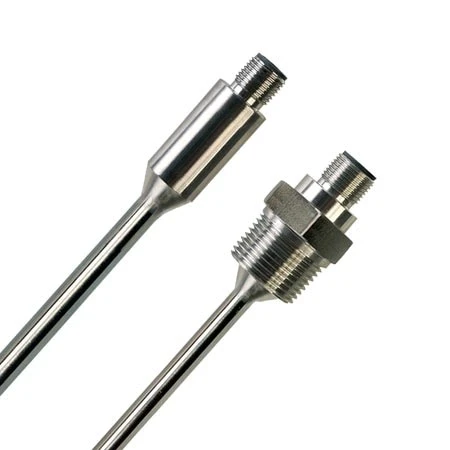

Thermistor Immersion Probes With A Standard M12 Connector

Original price was: $110.36.Current price is: $77.25.

Maximum Continuous Use, 200°C (392°F)
[Short Term Use to 250°C (482°F)] for Sensing End,
85°C (185°F) Max at the Connector
Vibration Tested to ASTM-E1137: 3Gs from 5 to 500 Hz

Nominal Resistance

Probe Diameter

Probe Length

Additional Feature

Clear

SKU: TH-21A-2252-1/4-0600-M12 Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The TH-21 Series thermistor probes are constructed with the 55000 Series glass encapsulated thermistor elements which provide excellent stability and accuracy. With a maximum continuous temperature rating of -80 to 200°C (-112 to 392°F), and intermittent operation to 250°C (482°F), these thermistor sensors can be used in applications previously out of reach of epoxy coated thermistor sensors. The probes can be ordered in any length but we highly recommend a minimum immersion depth of 1.5″. Short probes run the risk of error due to stem conduction effects.

Specifications
Temperature Range: -50 to 200°C (-58 to 392°F) at Sensing End
Probe Connector Temperature: 85°C (185°F) Max
Thermistor Sensor: Refer to Table 1 on next page
Operating Current: 12 micro-amps
Insulation Resistance: 100 MΩ minimum at 100 Vdc at ambient temperature
Response Time: Approximately 7 seconds (50%), 8 seconds (63.2%), 14 seconds (90%) in water flowing at 0.91 m (3′) per second
External Materials: 316L stainless steel sheath and housing except connector insert
IP Rating: IP67 with mating connector installed

Nominal Resistance	2252 Ω @ 25°C, 10000 Ω @ 25°C, 3000 Ω @ 25°C, 5000 Ω @ 25°C
Probe Diameter	1/4 in, 1/8 in, 6 mm
Probe Length	6 in, 3 1/4 in, 5 in, 5.25 in, 120 in, 190 in, 3 in, 150 mm, 2 in, 4.50 in, 5.5 in, 1 in, 4 in, 1.5 in, 9 in
Additional Feature	Plain no thread, 1/2 NPT Mounting thread, 1/2 NPT, 3/8 NPT Mounting thread, 1/4 NPT, 1/4 NPT Mounting thread, M8x1 Mounting thread
Sheath Housing Material	316L Stainless Steel
