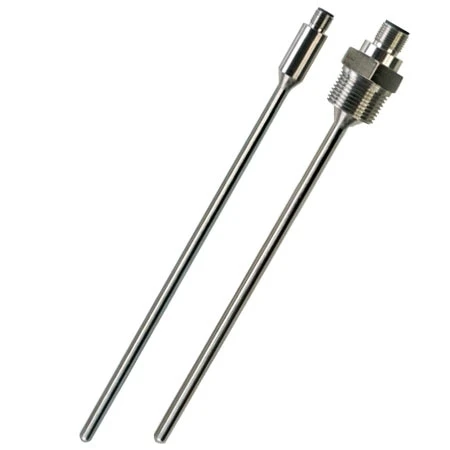

Thermistor Immersion Probes With High Temp M12 Connections

Original price was: $142.58.Current price is: $96.99.

Maximum Continuous Use, 200°C (392°F) [Short Term Use to 250°C (482°F)] for Probe and Connector
Vibration Tested to ASTM-E1137: 3Gs from 5 to 500 Hz
Excellent Long Term Stability
Tolerance: ±0.2°C From 0 to 70°C (32 to 158°F)

Nominal Resistance

Probe Diameter

Probe Length

Additional Feature

Clear

SKU: TH-22A-2252-M6-0350-M12 Categories: Probes with Integral Connectors, Temperature Probes Tag: Omega Engineering

100% Quality Satisfaction
Uncompromising quality, every time.
Quality You Can Trust
Your questions, our prompt answers.

The TH-22 Series thermistor probes are constructed with the 55000 Series glass encapsulated thermistor elements which provide excellent stability and accuracy. The connector design includes an LCP insert with nickel plated copper pins for high temperature applications, 200°C (392°F). With a maximum continuous temperature rating of -80 to 200°C (-112 to 392°F), and intermittent operation to 250°C (482°F), these thermistor sensors can be used in applications previously out of reach of epoxy coated thermistor sensors. The probes can be ordered in any length but we highly recommend a minimum immersion depth of 1.5″. Short probes run the risk of error due to stem conduction effects.

Specifications
Temperature Range: -50 to 200°C (-58 to 392°F)
Thermistor Sensor: Refer to Table 1 on next page
Operating Current: 12 micro-amps
Insulation Resistance: 100 MΩ minimum at 100 Vdc at ambient temperature
Response Time: Approximately 7 seconds (50%), 8 seconds (63.2%), 14 seconds (90%) in water flowing at 0.91 m (3′) per second
External Materials: 316L stainless steel sheath and housing except connector insert
IP Rating: IP67 with mating connector installed

Nominal Resistance	2252 Ω @ 25°C, 10000 Ω @ 25°C, 5000 Ω @ 25°C
Probe Diameter	6 mm, 1/4 in, 1/8 in
Probe Length	350 mm, 6 in, 150 mm, 250 mm, 105 in, 75 mm, 225 mm, 5 in, 3 in
Additional Feature	Plain no thread, G1/2 BSPP, 1/2 NPT, 3/8 NPT, 1/4 NPT, M8x1 Mounting thread, M10x1 Mounting thread, G 1/4 BSPP
Sheath Housing Material	316L Stainless Steel
